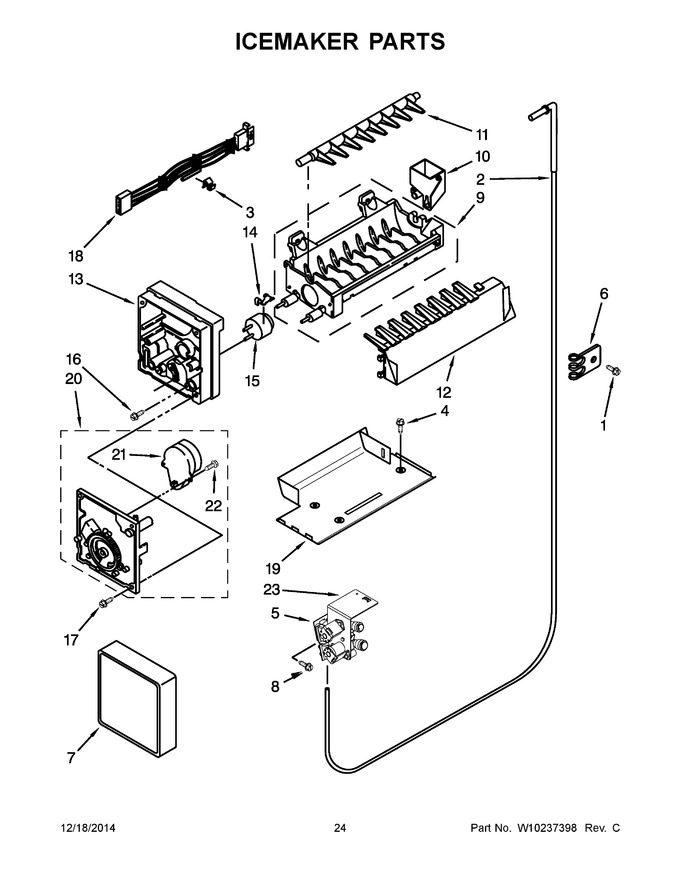

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 2 | WPW10334458 | Connector, Water Tube (Replaces: 2320322) |
|
$ 20.40 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 5 | WPW10210603 | Assembly, Filter Valve (Replaces: W10210603) |
|
$ 242.99 | |||||
| 6 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 10.73 | |||||
| 7 | WPW10289690 | Cover, Front (Replaces: 2174358) |
|
$ 7.94 | |||||
| 8 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 20.00 | |||||
| 9 | WPW10190929 | Assembly, Mold And Heater (Replaces: W10122527) |
|
$ 210.17 | |||||
| 10 | WPW10272168 | Cup, Water Fill (Replaces: 2304969) |
|
$ 68.83 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 12 | W10297244 | Stripper, Ice (Replaces: 2198598) |
|
$ 69.12 | |||||
| 13 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 98.82 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 15 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 103.18 | |||||
| 16 | 8533917 | Screw |
|
$ 12.64 | |||||
| 17 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 18 | WP2187467 | Assembly, Ice Maker Wire (Replaces: 2187467) |
|
$ 121.84 | |||||
| 19 | 2303583 | Bracket, Icemaker Mounting |
|
$ 46.76 | |||||
| 20 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 143.80 | ||||
| 21 | 8201515 | Assembly, Motor (Replaces: 626683) |
|
Immediately | $ 143.80 | ||||
| 22 | 489136 | Screw |
|
$ 9.72 | |||||
| 23 | 2313394 | Shield, Water Valve |
|
- | |||||
| 100 | 2198597 | Assembly, Icemaker (complete) (Replaces: W10190960) |
|
Immediately | $ 168.10 |
