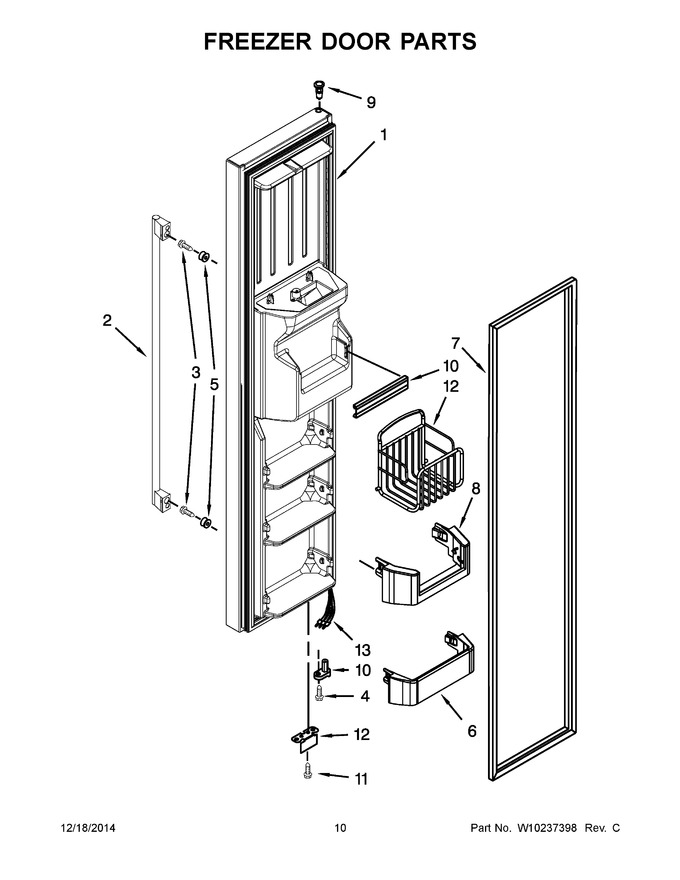

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10201420W		Door, Freezer (white)		Appelez-nous	-
2	WPW10202821		Assembly, Handle (stainless)   (Replaces: W10202821)				$ 274.10
3	WP488163		Screw   (Replaces: 488208)				$ 7.13
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
5	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.69
6	WP2171157		Trivet   (Replaces: 2171157K)				$ 57.33
7	2223850		Gasket, Door (mist Beige)		Appelez-nous	-
8	WPW10307490		Trim, Shelf   (Replaces: 2219982)			Immediately	$ 21.84
9	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.34
10	W10132977		Closer, Door				$ 12.16
11	WP489483		Screw   (Replaces: 489420)				$ 10.27
12	W10215319		Bracket, Door Stop (silver)		Appelez-nous	-
13	W10193334		Wire Assembly, Door		Appelez-nous	-
12A	W10215323		Bracket, Door Stop (black)		Appelez-nous	-
1A	W10201420S		Door, Freezer (stainless)		Appelez-nous	-
7A	2223912		Gasket, Door (black)		Appelez-nous	-
