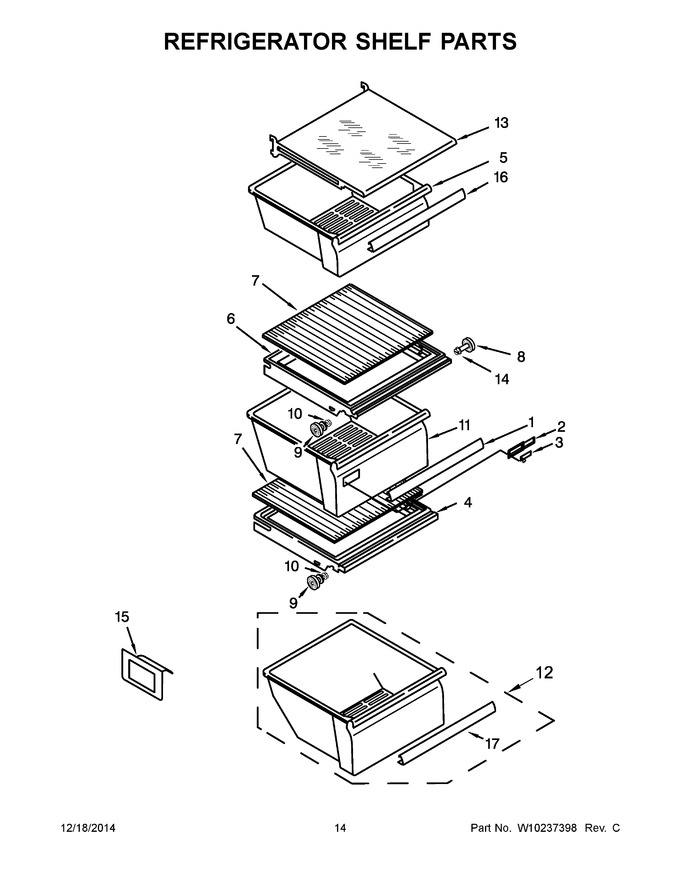

08 - Refrigerator Shelf Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Motor And Ice Container Parts


12 - Control Box Parts


13 - Icemaker Parts


14 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2179234		Trim, Crisper Pan Handle   (Replaces: 2255593)				$ 79.71
2	WP2179343		Body, Humidity Control   (Replaces: 2179343)				$ 30.62
3	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 27.54
4	WPW10270150		Assembly, Meat Cover   (Replaces: 2203027)				$ 323.61
5	W11497323		Pan, Snack   (Replaces: 2188655)				$ 211.36
6	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 275.27
7	W10864399		Glass, Cover   (Replaces: 2179259)				$ 208.83
8	2174478		Eyelet, Roller				$ 5.70
9	2188212		Roller		Appelez-nous	-
10	WPW10272364		Screw (stainless)   (Replaces: 489211)			Immediately	$ 10.22
11	WP2188656		Pan, Crisper   (Replaces: 2188652)				$ 128.90
12	2318569		Meat Pan				$ 73.60
13	2224060		Shelf		Appelez-nous	-
14	WP489261		Screw (stainless)   (Replaces: 489261)				$ 7.50
15	2223487		Deflector				$ 83.68
16	WP2179243		Trim, Shallow Pan Handle   (Replaces: 2179243)				$ 98.69
17	2203029		Handle, Meat Pan				$ 85.47
