SELECT A DIAGRAM
New Model Search:

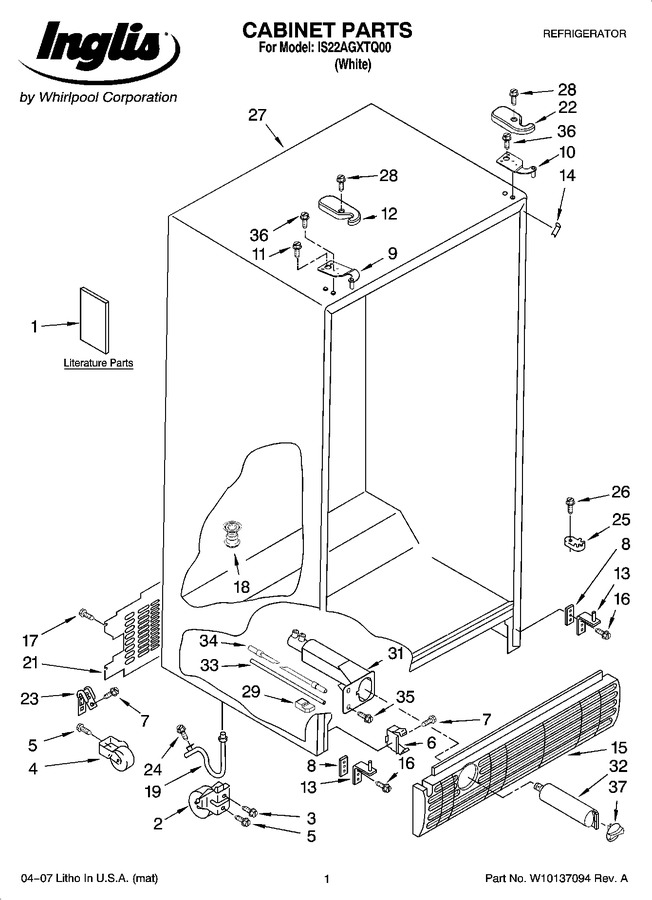

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2318598 | Use & Care Guide |
|
- | |||||
| 1 | 2255373 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10134562 | Energy Guide |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 12.98 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 37.96 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.30 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 8 | 2209697 | Shim |
|
$ 41.25 | |||||
| 9 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 90.27 | |||||
| 10 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 92.82 | |||||
| 11 | WP489128 | Screw (Replaces: 8281149) |
|
$ 10.26 | |||||
| 12 | WP2203407W | Hinge Cover (fc) (white) (Replaces: 2203407W) |
|
$ 19.61 | |||||
| 13 | 8201707 | Hinge Bottom (Replaces: 2304322) |
|
$ 87.71 | |||||
| 14 | 2304846 | Filler, Wrapper (white) |
|
- | |||||
| 15 | W10802713 | Grille (white) (Replaces: 2198467W) |
|
$ 115.14 | |||||
| 16 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 18 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 48.11 | ||||
| 19 | W11512417 | Extension Tube (Replaces: 2304937) |
|
$ 32.88 | |||||
| 21 | WP2188756 | Cover, Unit (Replaces: 2188734) |
|
$ 133.88 | |||||
| 22 | WP2203408W | Hinge Cover (rc) (white) (Replaces: 2203408W) |
|
$ 19.82 | |||||
| 23 | 549193 | Clamp-service Cord |
|
$ 12.65 | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 25 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.31 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.27 | |||||
| 28 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 9.86 | |||||
| 29 | 2186489 | Block-housing |
|
- | |||||
| 31 | WP2186443 | Housing, Water Filter (Replaces: 2186443) |
|
Immediately | $ 89.92 | ||||
| 32 | EDR5RXD1B | Water Filter (Replaces: 2203220) |
|
Immediately | $ 49.99 | ||||
| 33 | WPW10350006 | Tube, Filter Outlet (Replaces: 2304708) |
|
$ 109.19 | |||||
| 34 | 8201597 | Tube, Filter Inlet (Replaces: 2319867) |
|
Immediately | $ 75.33 | ||||
| 35 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.35 | |||||
| 36 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 37 | WP2186494W | Cap, Water Filter (white) (Replaces: 2186494W) |
|
$ 52.66 |
