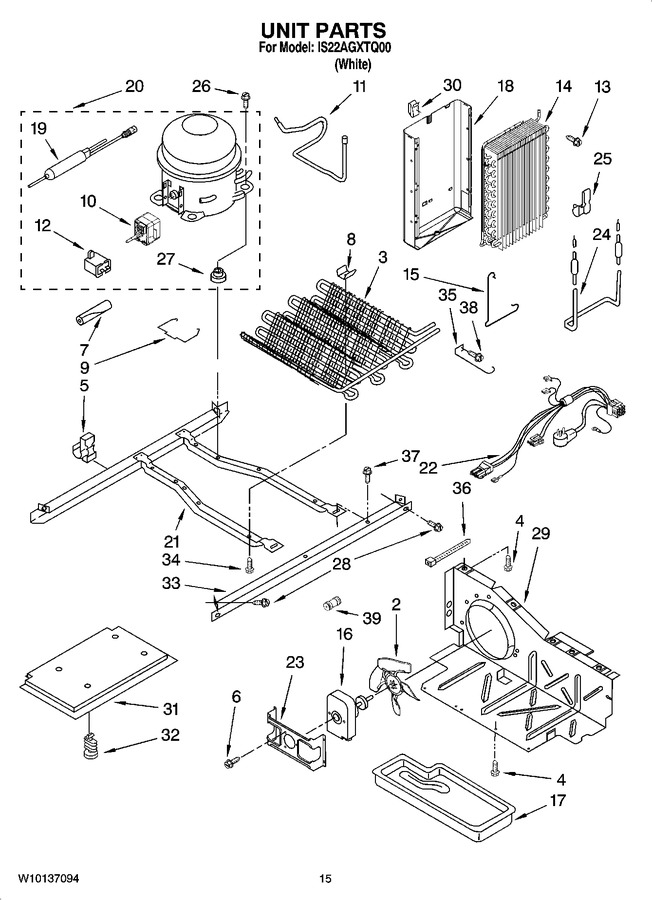

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 22.67 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10121487) |
|
$ 291.11 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 5 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 6 | 681390 | Screw (Replaces: 489099) |
|
$ 12.34 | |||||
| 7 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 19.19 | ||||
| 8 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 17.44 | |||||
| 9 | 2255009 | Bale, Strap |
|
- | |||||
| 10 | WP2188831 | Start-device, Combination (start Relay And Overload) (Replaces: 2188831) |
|
$ 167.72 | |||||
| 11 | 2220642 | Tube Suction |
|
$ 209.40 | |||||
| 12 | WP65889-4 | Capacitor (Replaces: 2252799) |
|
Immediately | $ 62.10 | ||||
| 13 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 14 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 321.16 | ||||
| 15 | 2161324 | Clamp |
|
- | |||||
| 16 | W10124096 | Fan, Motor (Replaces: 2188728) |
|
Immediately | $ 146.83 | ||||
| 17 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 142.34 | ||||
| 18 | 2217195 | Heat Shield |
|
- | |||||
| 19 | W10843121 | Drier (production) (Replaces: 2319825) |
|
Immediately | $ 51.42 | ||||
| 19 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 27.70 | ||||
| 20 | W10355489 | Compressor (includes Items 10, 12, 19 & 27) (also Order 876765 Tube Kit) (Replaces: W10120462) |
|
$ 610.65 | |||||
| 21 | 2304903 | Unit Mounting Frame |
|
$ 220.21 | |||||
| 22 | 2187510 | Unit, Harness |
|
- | |||||
| 23 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 11.64 | |||||
| 24 | WP2323197 | Heater, Defrost (Replaces: 2188174) |
|
Immediately | $ 110.93 | ||||
| 25 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 26 | 876811 | Screw (Replaces: 489373) |
|
$ 7.01 | |||||
| 27 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 28 | 489340 | Screw |
|
- | |||||
| 29 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 91.08 | |||||
| 30 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 31 | W11115203 | Unit Cover, Bottom (Replaces: 2304898) |
|
$ 489.43 | |||||
| 32 | 489396 | Clip |
|
$ 10.13 | |||||
| 33 | 2149718 | Unit Mounting Rail |
|
- | |||||
| 34 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 35 | 2186496 | Guard, Fan |
|
- | |||||
| 36 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 7.47 | |||||
| 37 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 38 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 20.00 | |||||
| 39 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 39 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 39 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 39 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 39 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 39 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 39 | WP4373559 | Union (Replaces: 2209709) |
|
$ 73.10 | |||||
| 39 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 |
