SELECT A DIAGRAM

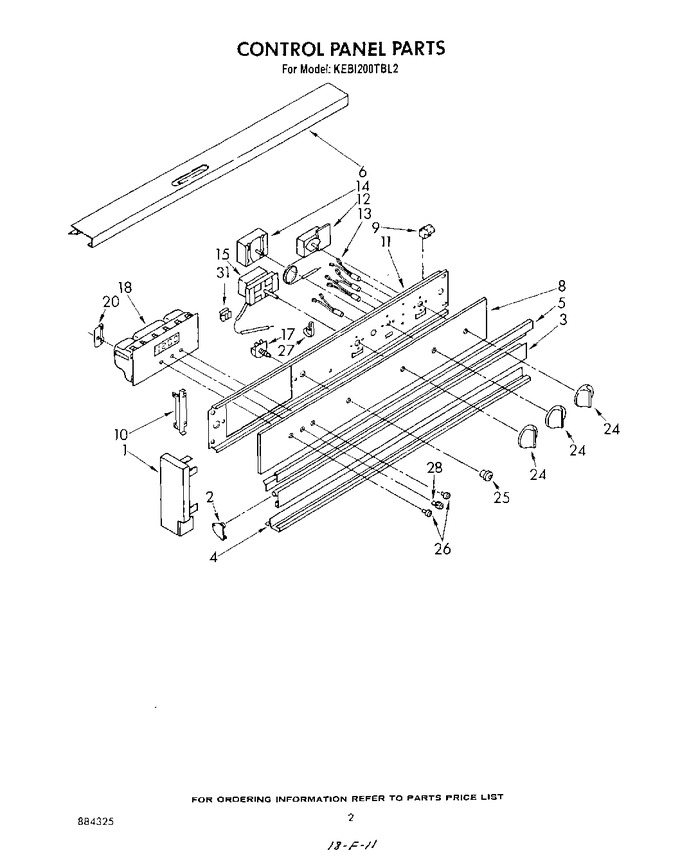

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Lower Oven Door , Lit/optional


06 - Upper Oven Door


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148015		End Cap R.h.		Appelez-nous	-
1	3148905		End Cap (washer)		Appelez-nous	-
1	3148014		End Cap. L.h.		Appelez-nous	-
2	3148697		End Trim, Vent (left Side)		Appelez-nous	-
2	3148698		End Trim, Vent (right Side)		Appelez-nous	-
3	314188		Door, Vent		Appelez-nous	-
4	342043		Screw (2)		Appelez-nous	-
4	314184		Trim, Bottom		Appelez-nous	-
5	342043		Screw (2)		Appelez-nous	-
5	314179		Trim, Center		Appelez-nous	-
6	312713		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
6	3148024		Rail, Top		Appelez-nous	-
8	3148088		Control Panel, Glass		Appelez-nous	-
9	310823		Retainer, Glass (4)		Appelez-nous	-
10	98520		Screw, 8a X 3/8 (4)		Appelez-nous	-
10	310720		Bracket, Control Panel (2)		Appelez-nous	-
11	3148110		Bracket, Control		Appelez-nous	-
12	311491		Screw (2)		Appelez-nous	-
12	313861		Thermostat, Oven Pyro		Appelez-nous	-
13	311802		Indicator Light (4)		Appelez-nous	-
14	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
14	3148119		Selector Switch		Appelez-nous	-
15	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.47
15	311481		Thermostat, Oven Standard Clean		Appelez-nous	-
15	311491		Screw (2)		Appelez-nous	-
17	312581		Switch, Oven Light		Appelez-nous	-
17	312796		Lockwasher		Appelez-nous	-
18	3148665		Timer, Digital		Appelez-nous	-
20	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
20	3148108		Bracket, Timer		Appelez-nous	-
24	314222		Knob, Control (3)		Appelez-nous	-
25	313030		Bezel Switch (1)		Appelez-nous	-
26	3177121		Knob, Push Button (2)		Appelez-nous	-
27	WP308605		Strain Relief (3)   (Replaces: 308605)				$ 10.58
28	3177122		Knob, Rotary		Appelez-nous	-
31	313570		Clip, Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
