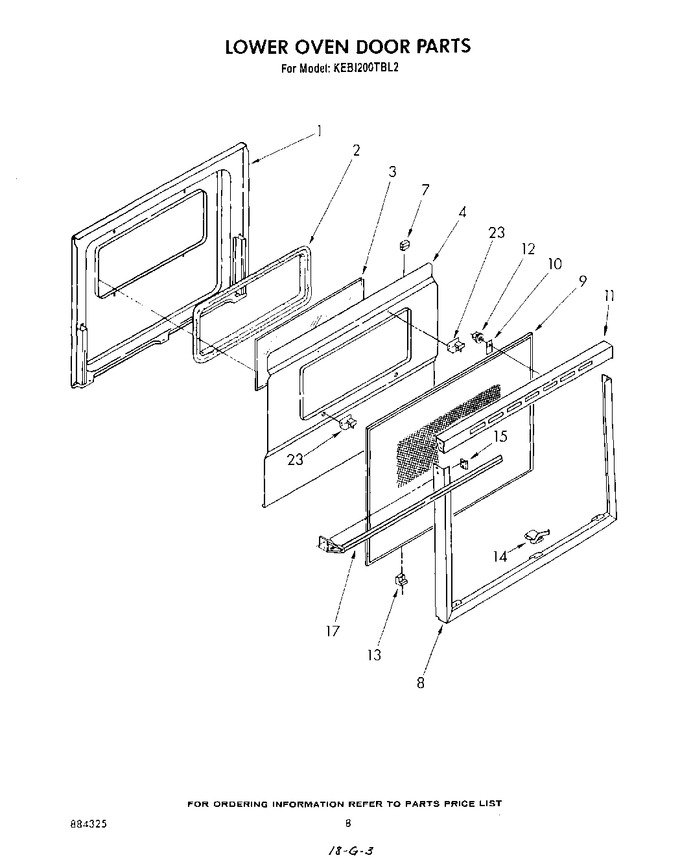

SELECT A DIAGRAM

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Lower Oven Door , Lit/optional


06 - Upper Oven Door


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488729		Screw, 8-18 X 1/2 (3)   (Replaces: 3148107)			Immediately	$ 7.45
1	311056		Screw, (4)		Appelez-nous	-
1	329687		Liner, Door		Appelez-nous	-
2	258711		Seal, Pano Glass		Appelez-nous	-
3	258988		Glass, Inner 30``		Appelez-nous	-
4	307924		Baffle, Insulation		Appelez-nous	-
7	312783		Channel, Rubber (4)		Appelez-nous	-
8	3148023		Frame, Door 30``		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
10	310705		Hold Down, Glass (2)		Appelez-nous	-
11	314250		Top, Door Frame		Appelez-nous	-
11	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
12	WP90296		Clip   (Replaces: 90296)				$ 7.42
13	308293		Seal, Foam		Appelez-nous	-
14	314234		Clip, Glass (10)		Appelez-nous	-
15	314235		Clip (2)		Appelez-nous	-
17	3147636		Handle, Oven Door		Appelez-nous	-
17	WP355515		Screw, Handle (2)   (Replaces: 355515)				$ 7.63
23	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
23	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
23	261881		Rotisserie (top Oven Only)		Appelez-nous	-
23	3170094		Spacer (4)		Appelez-nous	-
23	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
23	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
23	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
23	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
23	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
23	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
23	242829		Wire, Red 12 Ga. 150 Oc		Appelez-nous	-
23	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
23	242831		Wire (14 Ga. 200 C Red)				$ 342.23
23	242826		Wire, White 14 Ga. 150 Oc		Appelez-nous	-
23	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
23	242832		Wire, Yellow 14 Ga. 200 Oc		Appelez-nous	-
23	261810		Touch-up Oven (1 Oz.)		Appelez-nous	-
23	261582		Grease		Appelez-nous	-
23	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 52.37
23	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 52.37
	LIT3147385		Instructions, Installation		Appelez-nous	-
	LIT3147469		Book, Cooking Guide		Appelez-nous	-
	LIT3147424		Guide, Use & Care		Appelez-nous	-
	LIT3148706		Tech Sheet		Appelez-nous	-
	LIT884325		List, Parts		Appelez-nous	-
