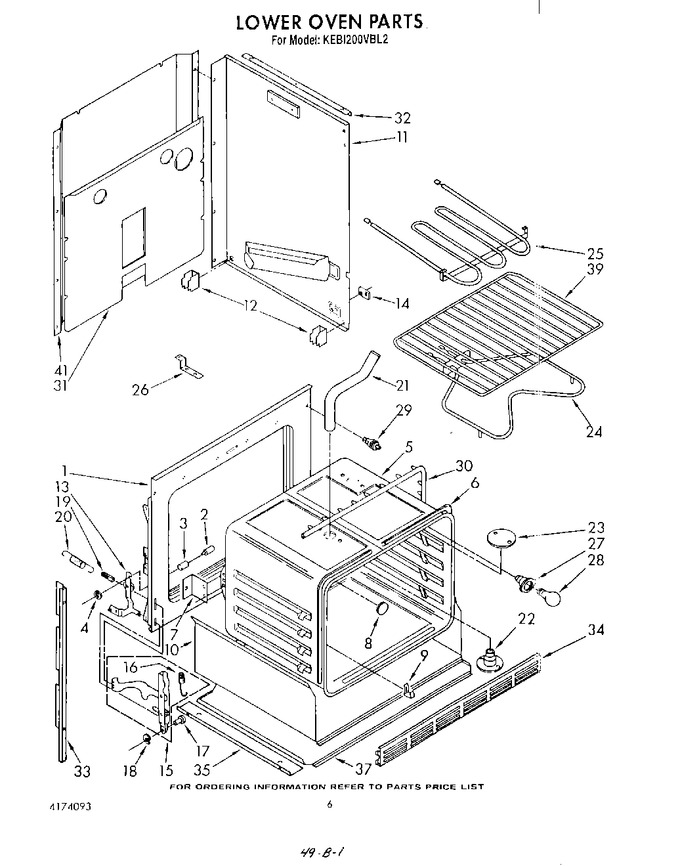

04 - Lower Oven


05 - Lower Oven Door


06 - Upper Over Door


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP313808		Screw (4)   (Replaces: 313808)				$ 7.47
1	3172194		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3172451		Oven 30`` Standard Clean		Appelez-nous	-
5	311056		Screw (3)		Appelez-nous	-
6	309107		Heat Seal				$ 63.50
7	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
8	257314		Plug Button		Appelez-nous	-
9	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 78.37
10	310770		Insulation Tray		Appelez-nous	-
10	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.45
11	311007		Side Wrapper (right Side)		Appelez-nous	-
11	311010		Side Wrapper (left Side)		Appelez-nous	-
12	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.45
12	311774		Support, Side Wrapper (4)		Appelez-nous	-
13	328802		Hinge Ear, L.h.		Appelez-nous	-
13	328801		Hinge Ear, R.h.		Appelez-nous	-
14	310659		Plate, Side Panel (2)		Appelez-nous	-
14	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 7.47
15	329714		Channel Arm (2)		Appelez-nous	-
16	311092		Spring, Door Stop (2)		Appelez-nous	-
17	WP307986		Pin Hinge   (Replaces: 307986)				$ 14.23
18	307594		Retainer, Ring		Appelez-nous	-
19	WP308125		Anchor, Spring (2)   (Replaces: 311897)				$ 11.47
20	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.62
20	308127		Spring, Oven Door (2)				$ 11.75
21	WP681414		Screw (6)   (Replaces: 343641)			Immediately	$ 7.62
21	311259		Tube, Lower Vent		Appelez-nous	-
22	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.45
22	310840		Eliminator, Smoke		Appelez-nous	-
23	310662		Plate, Cover		Appelez-nous	-
23	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.45
24	WP308180		Unit, Bake   (Replaces: 660576)				$ 120.00
25	3150532		Screw (4)		Appelez-nous	-
25	WP660579		Unit, Broil   (Replaces: 3148040)				$ 147.83
26	WP965173		Screw (4)   (Replaces: 246132)			Immediately	$ 10.68
26	314178		Bracket, Control Mounting		Appelez-nous	-
26	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.45
27	308043		Screw (2)		Appelez-nous	-
27	660556		Socket, Oven Light		Appelez-nous	-
28	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
29	310345		Switch, Door				$ 94.86
30	3148284		Seal, Door		Appelez-nous	-
31	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.45
31	3149542		Panel, Back		Appelez-nous	-
32	255095		Support Angle (2)		Appelez-nous	-
32	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.45
33	WP488729		Side Trim (screw (14))   (Replaces: 3148107)			Immediately	$ 7.45
33	310685		Side Trim (left Side)		Appelez-nous	-
33	310689		Side Trim (right Side)		Appelez-nous	-
34	309029		Screw, 8-15 X 1/2 Black (3)		Appelez-nous	-
34	310668		Grill, Bottom				$ 556.11
35	311592		Angle, Support (2)		Appelez-nous	-
37	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.45
37	310458		Cover, Bottom		Appelez-nous	-
39	308173		Rack, Straight		Appelez-nous	-
41	WP488729		Screw (11)   (Replaces: 3148107)			Immediately	$ 7.45
41	310434		Insulation, Oven		Appelez-nous	-
41	311013		Cover, Rear		Appelez-nous	-
41	310433		Insulation, Wrap		Appelez-nous	-
