Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP488729 Screw (3)   (Replaces: 3148107) In-Stock Immediately $ 7.45

1 311056 Screw, (4) Appelez-nous -
1 3172220 Liner, Door Appelez-nous -
2 3148183 Seal, Door Special Order $ 7.41

3 3148179 Glass, Inner Appelez-nous -
4 3148793 Retainer, Insulation Appelez-nous -
4 3148443 Screw (6) Appelez-nous -
8 3148784 Frame, Door Appelez-nous -
9 3148185 Glass, Outer Appelez-nous -
11 3148606 Top, Door Frame Appelez-nous -
15 314235 Clip (2) Appelez-nous -
17 WP355515 Screw, Handle (2)   (Replaces: 355515) Special Order $ 7.63

17 3147636 Handle, Oven Door Appelez-nous -
17 3149333 Screw (5) Special Order $ 5.33


    View Diagram in Separate Window     Print Icon   Print Part List

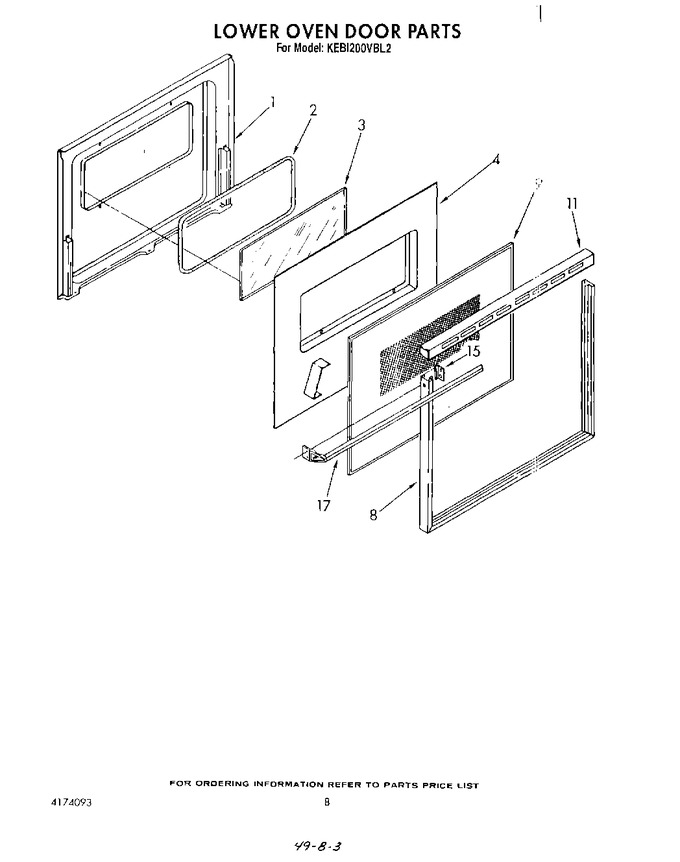

Diagram for KEBI200VBL2
