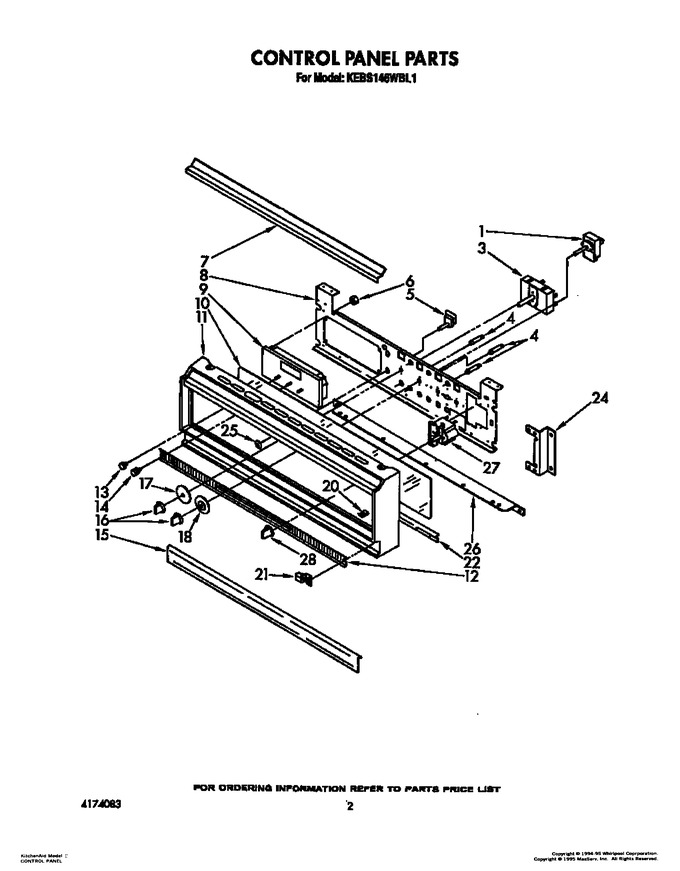

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178273		Thermostat, Upper		Appelez-nous	-
1	155023		Screw (2)			Immediately	$ 7.91
3	3178233		Switch, Selector		Appelez-nous	-
3	155023		Screw (2)			Immediately	$ 7.91
4	4168598		Light, Indicator (3)		Appelez-nous	-
5	3179891		Switch, Oven Light		Appelez-nous	-
6	98788		Nut, Timer (4)		Appelez-nous	-
7	4173298		Insert, Top		Appelez-nous	-
8	3177804		Bracket, Control		Appelez-nous	-
9	3148111		Timer, Electronic		Appelez-nous	-
10	3177948		Glass, Control Panel		Appelez-nous	-
11	3177759		Frame, Control Panel		Appelez-nous	-
12	3179915		Insert, Vent		Appelez-nous	-
12	3179847		Screw (4)		Appelez-nous	-
13	3177122		Knob, Timer (2)		Appelez-nous	-
14	3177121		Knob, Timer		Appelez-nous	-
15	4170323		Screw (5)		Appelez-nous	-
15	3177973		Door, Latch Handle		Appelez-nous	-
16	3178400		Knob, Control				$ 15.79
17	3178264		Disc, Selector		Appelez-nous	-
18	3178477		Disc, Thermostat (self Clean)		Appelez-nous	-
20	4168838		Nut (3)		Appelez-nous	-
21	3179847		Screw (2)		Appelez-nous	-
21	3177971		Hinge, Door (2)		Appelez-nous	-
22	4167590		Retainer, Glass		Appelez-nous	-
22	4159456		Screw (6)		Appelez-nous	-
24	3177747		Bracket, Control Panel		Appelez-nous	-
25	4169372		Bezel, Switch		Appelez-nous	-
26	3177651		Support, Frame		Appelez-nous	-
27	254225		Screw (2)		Appelez-nous	-
27	3180156		Indicator, Meat Probe		Appelez-nous	-
28	4163840		Knob, Meat Probe		Appelez-nous	-
28	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
	LIT3178197		Tech Sheet		Appelez-nous	-
	LIT4174083		Repair Parts List		Appelez-nous	-
