SELECT A DIAGRAM

01 - Cover


02 - Control Panel, Lit/optional


03 - Oven


04 - Oven Door

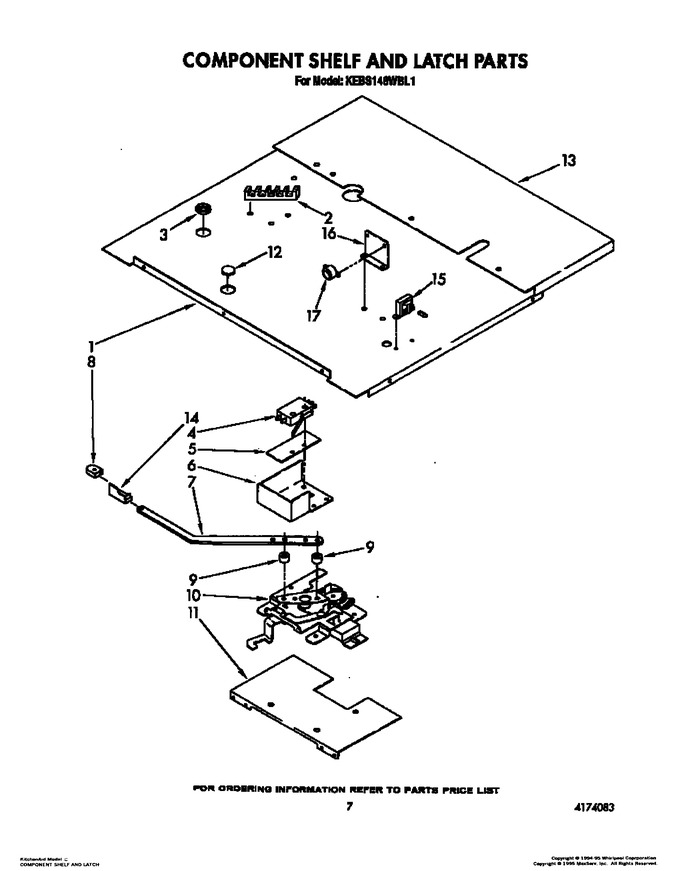

05 - Component Shelf And Latch


06 - Oven Liner


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw (7)   (Replaces: 300890)			Immediately	$ 7.43
1	3178090		Shelf, Component		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
2	W10841059		Screw (2)   (Replaces: 98445)		Appelez-nous	-
3	4159035		Bushing		Appelez-nous	-
4	3178668		Switch, Latch		Appelez-nous	-
4	98106		Screw (2)		Appelez-nous	-
5	3178185		Insulator, Switch		Appelez-nous	-
6	254225		Screw (2)		Appelez-nous	-
6	WP3177991		Screw (1)   (Replaces: 3177991)			Immediately	$ 6.80
6	3177662		Guard, Latch		Appelez-nous	-
7	3179116		Screw (2)		Appelez-nous	-
7	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
7	3179950		Screw (2)		Appelez-nous	-
7	3177969		Handle, Latch		Appelez-nous	-
8	311253		Knob, Latch Handle		Appelez-nous	-
9	3177986		Spacer, Handle		Appelez-nous	-
10	3178410		Latch, Mechanism		Appelez-nous	-
10	WP3177991		Screw (3)   (Replaces: 3177991)			Immediately	$ 6.80
11	3177496		Plate, Mounting		Appelez-nous	-
12	3179777		Plug, Button		Appelez-nous	-
13	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 6.80
13	3178133		Extension, Shelf		Appelez-nous	-
14	WP488234		Screw   (Replaces: 4159334)				$ 6.37
14	3178232		Support, Latch		Appelez-nous	-
15	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
15	3179532		Transformer		Appelez-nous	-
16	3180129		Screw (2)		Appelez-nous	-
16	3179695		Bracket, Buzzer		Appelez-nous	-
17	3179914		Buzzer, Meat Probe		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
