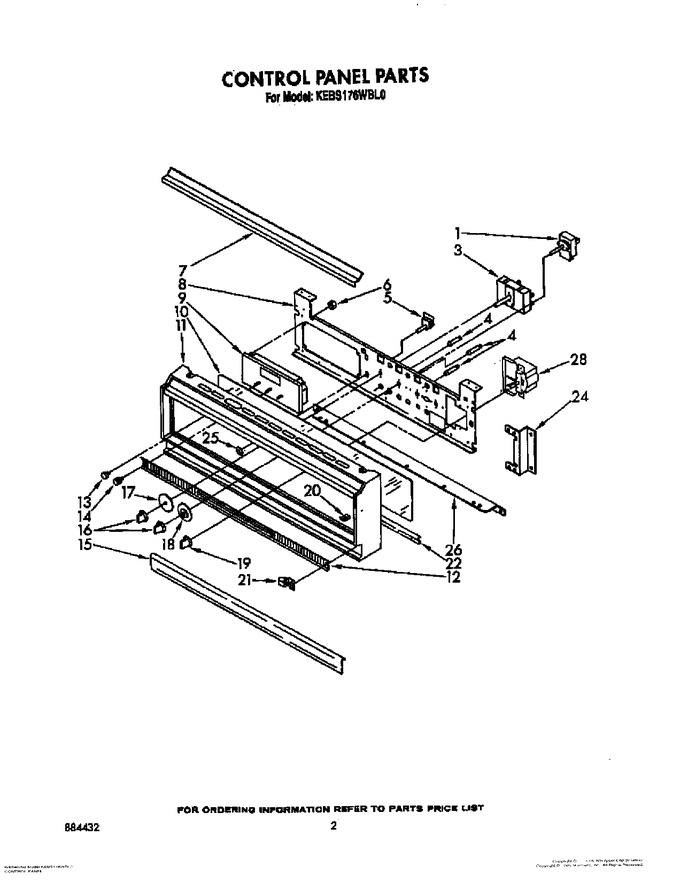

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	155023		Screw (2)			Immediately	$ 7.91
1	3178273		Thermostat		Appelez-nous	-
3	3178233		Switch, Selector		Appelez-nous	-
3	155023		Screw (2)			Immediately	$ 7.91
4	4168598		Light, Indicator		Appelez-nous	-
5	3179891		Switch, Oven Light		Appelez-nous	-
6	98788		Nut, Timer (4)		Appelez-nous	-
7	4173385		Insert, Top		Appelez-nous	-
8	3177804		Bracket, Control		Appelez-nous	-
9	4173071		Timer, Electronic		Appelez-nous	-
10	3177934		Glass, Control Panel		Appelez-nous	-
11	3177758		Frame, Control Panel		Appelez-nous	-
12	3179847		Screw (4)		Appelez-nous	-
12	3179916		Insert, Vent		Appelez-nous	-
13	3177122		Knob, Timer (2)		Appelez-nous	-
14	3177121		Knob, Timer		Appelez-nous	-
15	4170323		Screw (5)		Appelez-nous	-
15	3177972		Door, Latch Handle		Appelez-nous	-
16	3178400		Knob, Control (2)				$ 15.79
17	3178264		Disc, Selector		Appelez-nous	-
18	3178477		Disc, Thermostat		Appelez-nous	-
19	4163840		Knob		Appelez-nous	-
20	4168838		Nut (3)		Appelez-nous	-
21	3177971		Hinge, Door (2)		Appelez-nous	-
21	3179847		Screw (2)		Appelez-nous	-
22	4159456		Screw (6)		Appelez-nous	-
22	4167590		Retainer, Glass		Appelez-nous	-
24	3177747		Bracket, Control Panel		Appelez-nous	-
24	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
25	4169372		Bezel, Switch		Appelez-nous	-
26	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
26	3177650		Support, Frame		Appelez-nous	-
28	254225		Screw (2)		Appelez-nous	-
28	3180156		Indicator, Light Meat Probe		Appelez-nous	-
