SELECT A DIAGRAM

02 - Control Panel


03 - Wiring Harness


04 - Oven


05 - Oven Door, Lit/optional


06 - Component Shelf And Latch


07 - Oven Liner

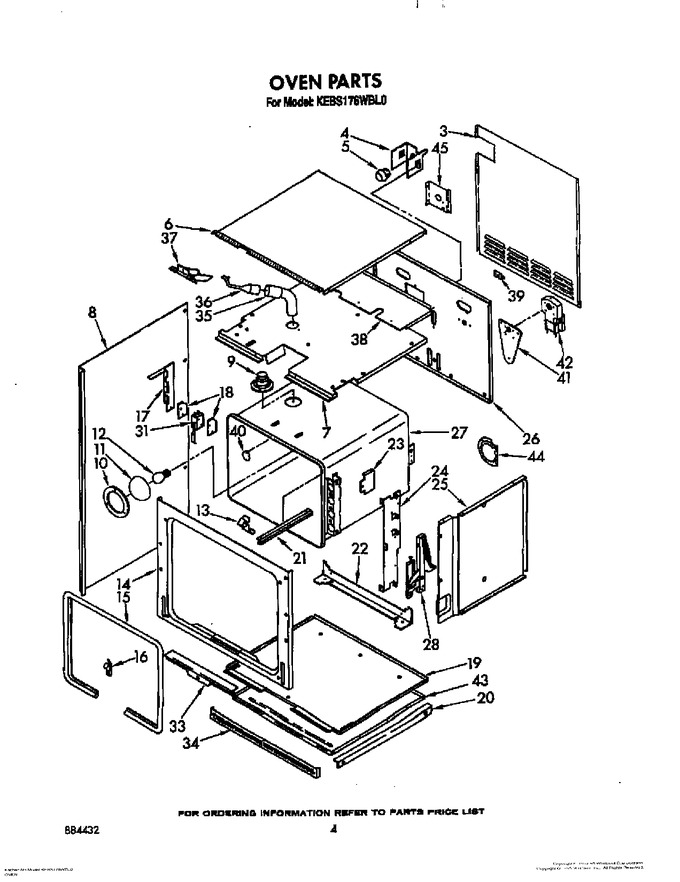

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3177625		Cabinet, Back		Appelez-nous	-
3	WP90767		Screw (10)   (Replaces: 300890)			Immediately	$ 7.43
4	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
4	3177446		Housing, Light		Appelez-nous	-
5	3177981		Socket, Light		Appelez-nous	-
5	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
6	3178136		Cabinet, Top		Appelez-nous	-
6	WP90767		Screw (5)   (Replaces: 300890)			Immediately	$ 7.43
7	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.43
7	3177436		Top, Module		Appelez-nous	-
8	3177441		Side, Cabinet (left Hand)		Appelez-nous	-
8	WP90767		Side, Cabinet (screw (14))   (Replaces: 300890)			Immediately	$ 7.43
8	3177442		Side, Cabinet (right Hand)		Appelez-nous	-
9	3179117		Screw (3)		Appelez-nous	-
9	4168492		Tube, Vent		Appelez-nous	-
10	3177447		Retainer, Glass		Appelez-nous	-
10	4159445		Screw (3)		Appelez-nous	-
11	4166866		Glass, Oven Light		Appelez-nous	-
12	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
13	98005642		Clip, Thermostat Bulb   (Replaces: 313382)			Immediately	$ 78.37
14	3177682		Frame, Front		Appelez-nous	-
15	3179813		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
17	3177681		Bracket, Switch		Appelez-nous	-
18	3177923		Insulator, Switch		Appelez-nous	-
19	3177621		Bottom, Module		Appelez-nous	-
20	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
20	3179220		Rail, Support (2)		Appelez-nous	-
21	3179117		Screw (4)		Appelez-nous	-
21	4168217		Support, Element (2)		Appelez-nous	-
22	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
22	3177434		Support, Oven		Appelez-nous	-
23	3178612		Shield, Radiation		Appelez-nous	-
23	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
24	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
24	3178000		Screw (6)		Appelez-nous	-
24	3177433		Bracket, Hinge		Appelez-nous	-
25	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
25	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
26	3177556		Back, Module		Appelez-nous	-
26	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.43
27	3177457		Liner, Oven		Appelez-nous	-
28	3178298		Hinge, Door (2)		Appelez-nous	-
28	3178000		Screw (4)		Appelez-nous	-
31	4173553		Switch, Door		Appelez-nous	-
31	313489		Screw (2)		Appelez-nous	-
31	4159117		Nut (2)		Appelez-nous	-
33	3179776		Screw (4)		Appelez-nous	-
33	W11233072		Screw   (Replaces: 4159450)			Immediately	$ 13.25
33	3179587		Retainer, Seal		Appelez-nous	-
34	4168863		Screw (2)		Appelez-nous	-
34	3180022		Screw (4)		Appelez-nous	-
34	3177787		Vent, Lower Trim		Appelez-nous	-
35	3179922		Vent, Tube (upper, Female)		Appelez-nous	-
36	3179923		Vent, Tube (upper, Male)		Appelez-nous	-
37	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
37	3178614		Shield, Vent		Appelez-nous	-
38	3178132		Extension, Shelf		Appelez-nous	-
38	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 6.80
39	4168203		Cover, Cap Tube		Appelez-nous	-
39	4159445		Screw		Appelez-nous	-
40	4167518		Plate, Cover		Appelez-nous	-
40	4168874		Screw		Appelez-nous	-
41	4167469		Plate, Mounting Rotisserie		Appelez-nous	-
42	WP90767		Screw (3)   (Replaces: 300890)			Immediately	$ 7.43
42	4159501		Washer, Lock Tooth		Appelez-nous	-
42	4163836		Motor, Rotisserie		Appelez-nous	-
42	WP488234		Screw (3)   (Replaces: 4159334)				$ 6.37
43	3177551		Bottom, Oven		Appelez-nous	-
44	WP3177991		Screw (4)   (Replaces: 3177991)			Immediately	$ 6.80
44	4163883		Plate, Cover		Appelez-nous	-
45	3177868		Insulation, Back		Appelez-nous	-
45	3177862		Insulation, Oven		Appelez-nous	-
45	3177545		Bracket, Conduit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
