Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 155023 Screw (2) In-Stock Immediately $ 7.91

1 3178273 Thermostat, Upper Appelez-nous -
2 3179778 Housing, Backlight Appelez-nous -
3 3178236 Switch, Selector Appelez-nous -
3 155023 Screw (2) In-Stock Immediately $ 7.91

4 4168598 Light, Indicator Appelez-nous -
5 3179891 Switch, Oven Light (black) Appelez-nous -
5 3179708 Switch, Oven Light (brass) Appelez-nous -
6 98788 Nut, Timer (4) Appelez-nous -
7 3180131 Insert, Top (white) Appelez-nous -
7 4173163 Insert, Top (black) Appelez-nous -
7 3180130 Insert, Top (almond) Appelez-nous -
8 3177804 Bracket, Control Appelez-nous -
9 3148111 Timer, Electronic Appelez-nous -
10 3179714 Glass, Control Panel (almond) Appelez-nous -
10 3179713 Glass, Control Panel (white) Appelez-nous -
10 3177938 Glass, Control Panel (black) Appelez-nous -
11 3178575 Frame, Control Panel (white) Appelez-nous -
11 3177760 Frame, Control Panel (black) Appelez-nous -
11 3178576 Frame, Control Panel (almond) Appelez-nous -
12 3179916 Insert, Vent Appelez-nous -
12 3179847 Screw (4) Appelez-nous -
13 3179704 Knob, Timer (2) (chrome) Appelez-nous -
13 3177122 Knob, Timer (2) (black) Appelez-nous -
14 3177121 Knob, Timer (black) Appelez-nous -
14 3179705 Knob, Timer (chrome) Appelez-nous -
15 4170323 Door, Latch Handle (screw (5)) Appelez-nous -
15 3177972 Door, Latch Handle (black) Appelez-nous -
15 3179710 Door, Latch Handle (almond) Appelez-nous -
15 3179709 Door, Latch Handle (white) Appelez-nous -
16 3178400 Knob, Control (3) Special Order $ 15.79

17 3178254 Disc, Selector (upper) Appelez-nous -
17 3178256 Disc, Selector (lower) Appelez-nous -
18 3178477 Disc, Thermostat (self Clean) (2) Appelez-nous -
19 4173153 Meat Probe Indicator Assy. Appelez-nous -
20 4168838 Nut (3) Appelez-nous -
21 3179847 Screw (2) Appelez-nous -
21 3177971 Hinge, Door (2) Appelez-nous -
22 4159456 Screw (6) Appelez-nous -
22 4167590 Retainer, Glass Appelez-nous -
23 3178274 Thermostat, Lower Appelez-nous -
23 155023 Screw (2) In-Stock Immediately $ 7.91

24 3177747 Bracket, Control Panel Appelez-nous -
24 WP3177991 Screw (2)   (Replaces: 3177991) In-Stock Immediately $ 6.80

25 4169372 Bezel, Switch (black) Appelez-nous -
25 3179707 Bezel, Switch (chrome) Appelez-nous -
26 WP3177991 Screw (2)   (Replaces: 3177991) In-Stock Immediately $ 6.80

26 3177650 Support, Frame Appelez-nous -
27 254225 Screw (2) Appelez-nous -
27 3178234 Switch, Selector Appelez-nous -
27 155023 Screw (2) In-Stock Immediately $ 7.91

29 3178126 Switch, Rotory (2) Appelez-nous -
30 3180844 Clip, Spacer Appelez-nous -
30 4163840 Knob, Meat Probe Appelez-nous -
LIT3177060 Guide, Use & Care Appelez-nous -
LIT3178200 Tech Sheet Appelez-nous -
LIT4174135 Repair Parts List Appelez-nous -
LIT3149670 Cooking Guide Appelez-nous -
LIT3178195 Installation Instructions Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

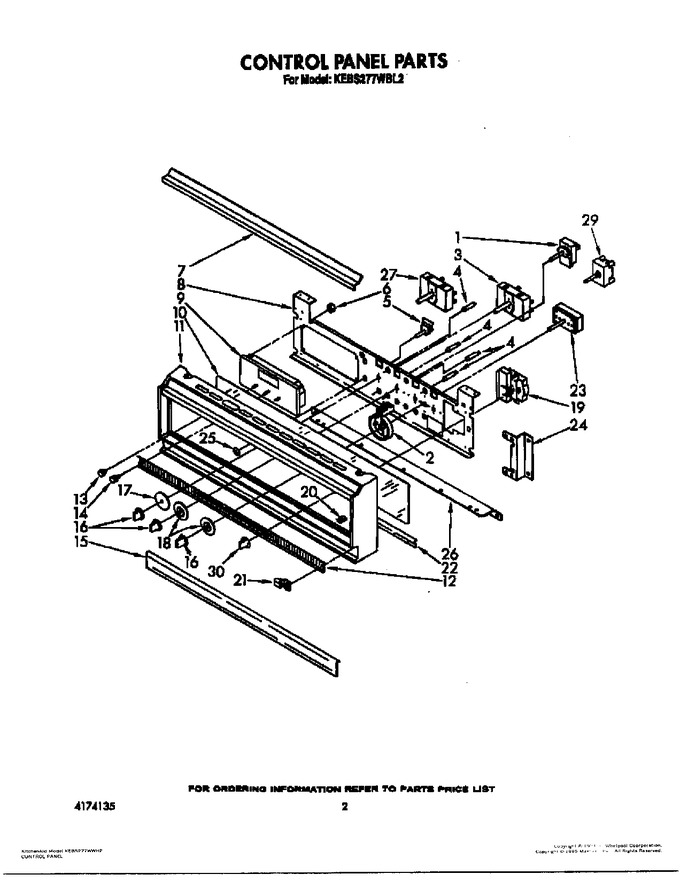

Diagram for KEBS277WBL2
