SELECT A DIAGRAM

01 - Front Cover


02 - Control Panel, Lit/optional

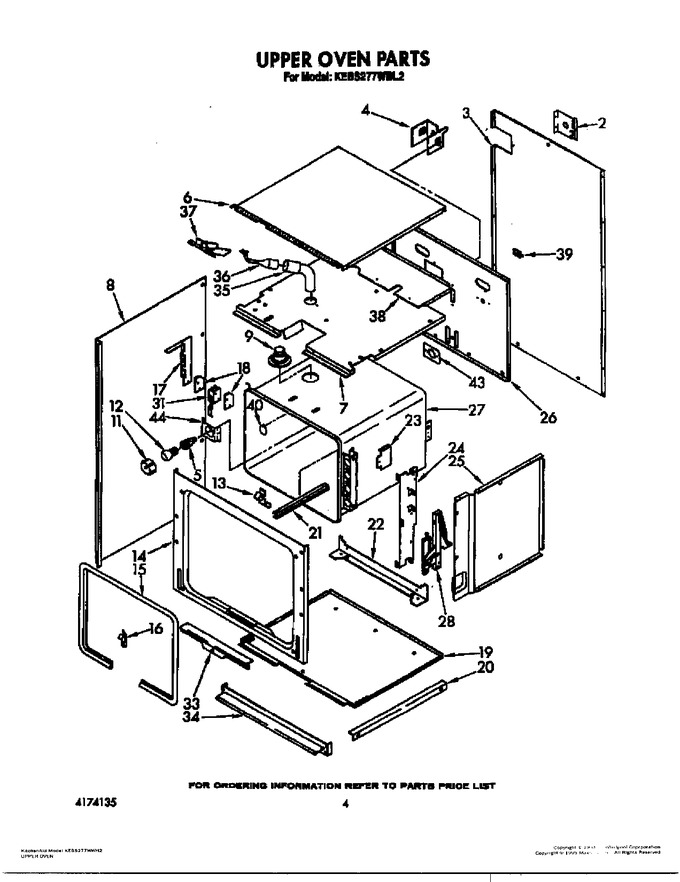

03 - Upper Oven


04 - Convection Fan


05 - Lower Oven, Optional


06 - Upper And Lower Oven Door


07 - Internal Oven


08 - Component Shelf And Latch


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3177545		Bracket, Conduit		Appelez-nous	-
3	WP90767		Screw (14)   (Replaces: 300890)			Immediately	$ 7.43
3	3177739		Cabinet, Back		Appelez-nous	-
4	3177446		Housing, Light		Appelez-nous	-
4	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
5	4173173		Base, Oven Light		Appelez-nous	-
6	3178136		Cabinet, Top		Appelez-nous	-
6	WP90767		Screw (5)   (Replaces: 300890)			Immediately	$ 7.43
7	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.43
7	3177436		Top, Module		Appelez-nous	-
8	3177438		Side, Cabinet (right Hand)		Appelez-nous	-
8	3177440		Side, Cabinet (left Hand)		Appelez-nous	-
8	WP90767		Side, Cabinet (screw (18))   (Replaces: 300890)			Immediately	$ 7.43
9	4168492		Tube, Vent		Appelez-nous	-
9	3179117		Screw (3)		Appelez-nous	-
10	WP4173175		Assembly, Oven Light   (Replaces: 3178521)			Immediately	$ 49.04
11	4173174		Lens, Light		Appelez-nous	-
12	WP4173175		Bulb, Lamp   (Replaces: 4173175)			Immediately	$ 49.04
13	98005642		Clip, Thermostat Bulb   (Replaces: 313382)			Immediately	$ 78.37
14	3177682		Frame, Front		Appelez-nous	-
15	3179813		Seal, Door		Appelez-nous	-
16	3179848		Clip, Oven Seal		Appelez-nous	-
17	3177681		Bracket, Switch		Appelez-nous	-
18	3177923		Insulator, Switch		Appelez-nous	-
19	3177621		Module, Bottom		Appelez-nous	-
20	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
20	3179220		Rail, Support (4)		Appelez-nous	-
21	3179117		Screw (4)		Appelez-nous	-
21	4168674		Retainer, Element		Appelez-nous	-
21	4168217		Support, Element (2)		Appelez-nous	-
22	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
22	3177434		Support, Oven		Appelez-nous	-
23	3178612		Shield, Radiation		Appelez-nous	-
23	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
24	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
24	3177433		Bracket, Hinge		Appelez-nous	-
24	3179795		Screw (6)		Appelez-nous	-
25	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
25	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 7.43
26	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 7.43
26	3177556		Back, Module		Appelez-nous	-
27	3177467		Liner, Oven		Appelez-nous	-
28	3178298		Hinge, Door (2)		Appelez-nous	-
28	3179795		Screw (4)		Appelez-nous	-
29	4159122		Button, Plug		Appelez-nous	-
30	4159120		Button, Plug		Appelez-nous	-
31	313489		Screw (2)		Appelez-nous	-
31	4159117		Nut (2)		Appelez-nous	-
31	4173553		Switch, Door		Appelez-nous	-
32	3177923		Insulator, Switch		Appelez-nous	-
33	3179587		Retainer, Seal		Appelez-nous	-
33	W11233072		Screw (2)   (Replaces: 4159450)			Immediately	$ 13.25
34	3177753		Vent, Middle Trim (brushed Chrome)		Appelez-nous	-
34	4168863		Vent, Middle Trim (screw (2))		Appelez-nous	-
34	3177755		Vent, Middle Trim (black)		Appelez-nous	-
34	3180022		Vent, Middle Trim (screw (4))		Appelez-nous	-
35	3179922		Vent, Tube (upper, Female)		Appelez-nous	-
36	3180891		Vent, Tube (upper, Male)		Appelez-nous	-
37	3180890		Shield, Vent		Appelez-nous	-
37	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
38	3178133		Extension, Shelf		Appelez-nous	-
38	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 6.80
39	4168203		Cover, Cap Tube		Appelez-nous	-
39	4159445		Screw		Appelez-nous	-
40	4168874		Screw		Appelez-nous	-
40	4167518		Plate, Cover		Appelez-nous	-
43	3178040		Plate, Mounting Oven Light		Appelez-nous	-
43	4159445		Screw, (2)		Appelez-nous	-
44	3177862		Insulation, Wrap		Appelez-nous	-
44	4173179		Retainer, Insulation		Appelez-nous	-
44	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 7.43
44	3177868		Insulation, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
