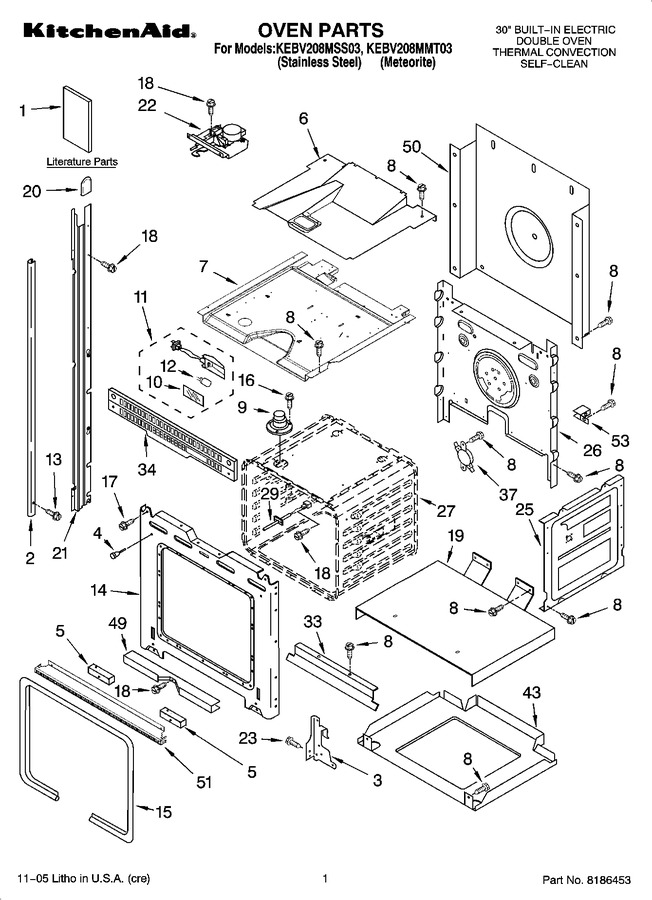

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4448687 | Easy Set Guide (french) |
|
- | |||||
| 1 | 9759133 | Safecooking Tips |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | 8300651 | Installation Instructions Use & Care Guide |
|
- | |||||
| 1 | 8304069 | French |
|
- | |||||
| 1 | 8304062 | Owners Manual |
|
- | |||||
| 1 | 8302066 | Tech Sheet (english) |
|
- | |||||
| 1 | 8302078 | Tech Sheet (french) |
|
- | |||||
| 1 | 4449264 | Easy Set Guide (english) |
|
- | |||||
| 2 | 8301801 | Trim, Side (rh S.steel) |
|
- | |||||
| 2 | 8301803 | Trim, Side (rh Meteorite) |
|
- | |||||
| 2 | 8301802 | Trim, Side (lh S.steel) |
|
- | |||||
| 2 | 8301804 | Trim, Side (lh Meteorite) |
|
- | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 114.93 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 118.57 | ||||
| 4 | 4448520 | Bumper, Door |
|
$ 20.03 | |||||
| 5 | 4452490 | Spacer, Foam |
|
$ 34.83 | |||||
| 6 | 8302349 | Divider, Vent |
|
$ 142.26 | |||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 110.21 | |||||
| 10 | 4452163 | Lens, Light |
|
$ 12.33 | |||||
| 11 | WP4448972 | Oven Light Assy (Replaces: 4448972) |
|
$ 103.38 | |||||
| 12 | WP4452164 | Bulb, Light (Replaces: 4452164) |
|
Immediately | $ 63.62 | ||||
| 13 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.80 | |||||
| 14 | 9759060 | Frame, Front |
|
- | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 67.10 | ||||
| 16 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 20 | 4451605 | Cap, Spacer |
|
$ 38.55 | |||||
| 21 | 814374 | Rail, Side (left Side) (Replaces: 4450582) |
|
$ 214.41 | |||||
| 21 | 814373 | Rail, Side (right Side) (Replaces: 4450581) |
|
$ 214.07 | |||||
| 22 | WP9760889 | Latch, Motorized (Replaces: 9760888) |
|
Immediately | $ 310.57 | ||||
| 23 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.80 | |||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 135.62 | |||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 27 | N/A | Liner, Oven (not Serviceable) |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 94.50 | ||||
| 33 | 9760678 | Deflector, Vent |
|
- | |||||
| 34 | 4452267 | Vent, Center |
|
$ 67.43 | |||||
| 37 | WP9759242 | Thermostat (tod) (Replaces: 9759242) |
|
Immediately | $ 77.01 | ||||
| 43 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 8.37 | |||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 135.06 | |||||
| 51 | 8301629 | Trim, Bottom (meteorite) |
|
- | |||||
| 51 | 8301590 | Trim, Bottom (stainless Steel) |
|
- | |||||
| 53 | N/A | Following Parts Not Illustrated Insulation |
|
- | |||||
| 53 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 112.37 | |||||
| 53 | 4449845 | Support, Bracket |
|
- | |||||
| 53 | 4450365 | Insulation, Back |
|
$ 70.95 |
