SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

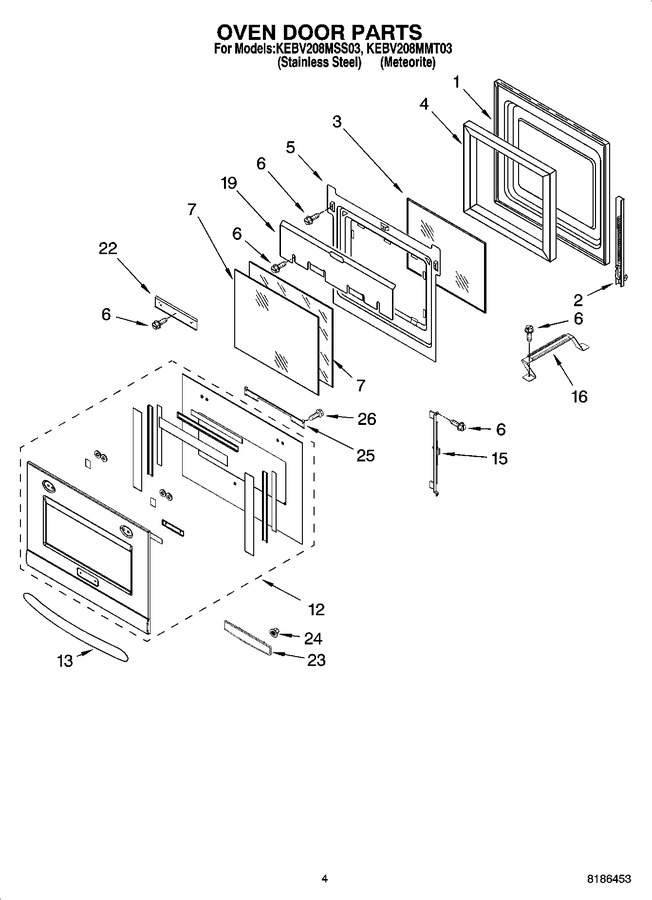

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 8303700)				$ 333.41
2	WP9760574		Hinge, Door (l.hand (orange))   (Replaces: 9760580)			Immediately	$ 102.33
2	WP9760579		Hinge, Door (r.hand (orange))   (Replaces: 9760579)			Immediately	$ 103.76
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 192.01
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 170.79
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 288.89
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 178.02
12	4457292		Door Glass, Assy (s.steel Model)		Appelez-nous	-
12	4457293		Door Glass, Assy (meteorite Model)		Appelez-nous	-
13	8301679		Door Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 168.75
16	9759230		Bracket (3rdglass)				$ 36.30
19	4457104		Shield, Heat   (Replaces: 4457103)				$ 35.30
22	4457114		Shield, Heat-bottom				$ 196.01
23	8531789		Nameplate		Appelez-nous	-
24	4453107		Palnut (2)		Appelez-nous	-
25	8303668		Bracket, Handle		Appelez-nous	-
26	WPW10132940		Screw   (Replaces: 3196184)				$ 9.11

    View Diagram in Separate Window       Print Part List
