SELECT A DIAGRAM

02 - Oven

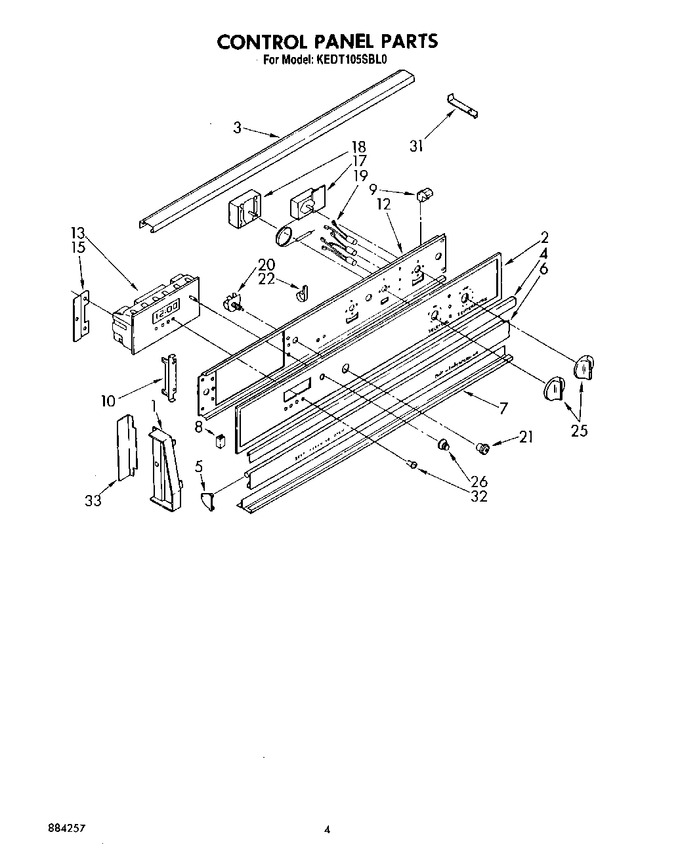

03 - Control Panel


04 - Door


05 - Wiring Harness, Lit/optional


06 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	314242		End Cap L.h.		Appelez-nous	-
1	314243		End Cap R.h.		Appelez-nous	-
1	342043		Screw (2)		Appelez-nous	-
2	3147676		Control Panel, Glass		Appelez-nous	-
3	314240		Rail, Top		Appelez-nous	-
4	314241		Trim, Center		Appelez-nous	-
5	310833		End Trim, Vent (right Side)		Appelez-nous	-
5	310832		End Trim, Vent (left Side)		Appelez-nous	-
6	314186		Door, Vent		Appelez-nous	-
7	342043		Screw (6)		Appelez-nous	-
7	3147641		Trim, Bottom		Appelez-nous	-
8	310842		Channel, Rubber (2)		Appelez-nous	-
9	310823		Retainer, Glass (4)		Appelez-nous	-
10	310720		Bracket, Control Panel (2)		Appelez-nous	-
10	WP488234		Screw (4)   (Replaces: 9412221)				$ 6.37
12	330500		Bracket, Control		Appelez-nous	-
13	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
13	3147698		Timer, Digital (included No.14)		Appelez-nous	-
15	313864		Bracket, Timer (2)		Appelez-nous	-
17	313861		Thermostat, Oven		Appelez-nous	-
17	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
18	312289		Switch, Selector		Appelez-nous	-
18	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
19	311802		Light Indicator Oven, Lock & Clean (3)		Appelez-nous	-
20	312581		Switch, Oven Light		Appelez-nous	-
20	312796		Washer		Appelez-nous	-
20	WP965173		Screw, 8a X 3/8 (4)   (Replaces: 246132)			Immediately	$ 10.68
21	313030		Bezel Switch		Appelez-nous	-
22	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.58
22	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 10.68
25	314222		Knob, Control (2)		Appelez-nous	-
26	313523		Knob, Timer (3)				$ 13.66
31	312752		Support, Rail		Appelez-nous	-
31	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 10.68
32	313958		Button, Set		Appelez-nous	-
33	314246		Trim, End Cap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
