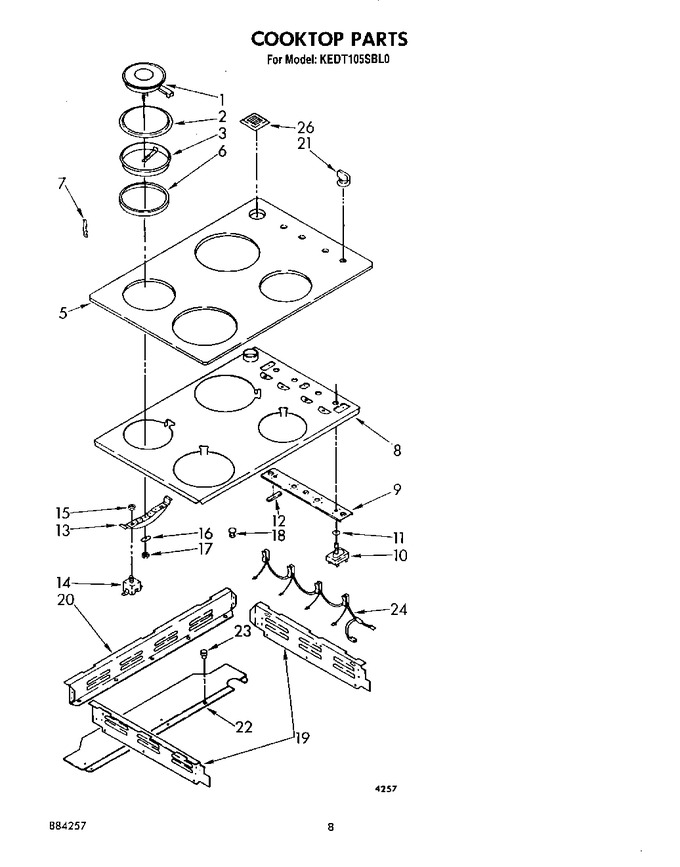

06 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3147131		Unit, Surface (2) 6``   (Replaces: 3147131)				$ 257.00
1	WP3147132		Unit, Surface (2) 8``   (Replaces: 3147132)				$ 286.33
2	3147185		Ring, Intermediate (2) (6``)		Appelez-nous	-
2	3147186		Ring, Intermediate (2) (8``)		Appelez-nous	-
3	3147188		Gasket (2) (8``)		Appelez-nous	-
3	3147187		Gasket (2) (6``)		Appelez-nous	-
5	3148036		Glass, Top		Appelez-nous	-
6	3147126		Seal (2) (8``)		Appelez-nous	-
6	3147127		Seal (2) (6``)		Appelez-nous	-
7	3147768		Hook, Seal (4)		Appelez-nous	-
8	3147038		Plate, Backup		Appelez-nous	-
9	254225		Screw, 8bt X 1/4 (3)		Appelez-nous	-
9	3147735		Bracket, Switch		Appelez-nous	-
10	314267		Switch, Infinite (6``)		Appelez-nous	-
10	WP486579		Switch, Infinite (screw, 8-32 (8))   (Replaces: 311865)				$ 7.10
10	314268		Switch, Infinite (8``)		Appelez-nous	-
11	309839		Seal, Shaft (4)		Appelez-nous	-
12	3147485		Tape, Foam		Appelez-nous	-
13	3147704		Bracket, Mounting (8``)		Appelez-nous	-
13	3147703		Bracket, Mounting (6``)		Appelez-nous	-
14	3147640		Protector (4)		Appelez-nous	-
15	3147190		Nut (4)		Appelez-nous	-
16	3147191		Spring, Leaf (4)		Appelez-nous	-
17	3147189		Nut (4)		Appelez-nous	-
18	311688		Lens (4)		Appelez-nous	-
19	3147024		Rail, Support (l.h.)		Appelez-nous	-
19	3147025		Rail, Support (r.h.)		Appelez-nous	-
20	3147061		Rail, Back, Support (2)		Appelez-nous	-
20	307537		Screw, 8-32 (8)		Appelez-nous	-
21	314222		Knob, Control (4)		Appelez-nous	-
22	3147566		Cover, Top		Appelez-nous	-
22	307537		Screw, 8-32 (3)		Appelez-nous	-
23	258109		Bushing		Appelez-nous	-
24	3148054		Indicator, Light		Appelez-nous	-
26	3147037		Cover, Vent		Appelez-nous	-
