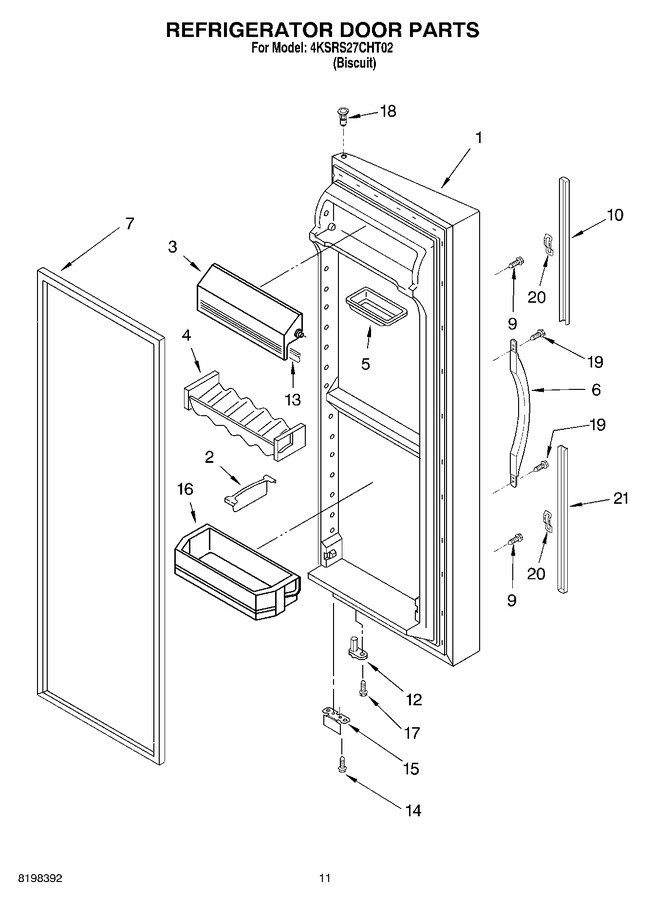

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214420T		Refrigerator Door (includes No.7)		Appelez-nous	-
2	2195497		Load, Lock (4)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Butter, Dish		Appelez-nous	-
6	2217185T		Handle		Appelez-nous	-
7	2159075		Door Gasket, Magnetic (service)   (Replaces: 2221302)			Immediately	$ 333.00
9	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
10	2217187T		Trim, Door-top		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2206910		Bracket, Door Stop		Appelez-nous	-
16	2171062		Shelf Bin (4)				$ 40.08
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	WP2182179		Thimble-top   (Replaces: 2182178)			Immediately	$ 7.20
19	WP489491		Screw   (Replaces: 489491)				$ 7.30
20	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
21	2217186T		Trim, Door-bottom		Appelez-nous	-
