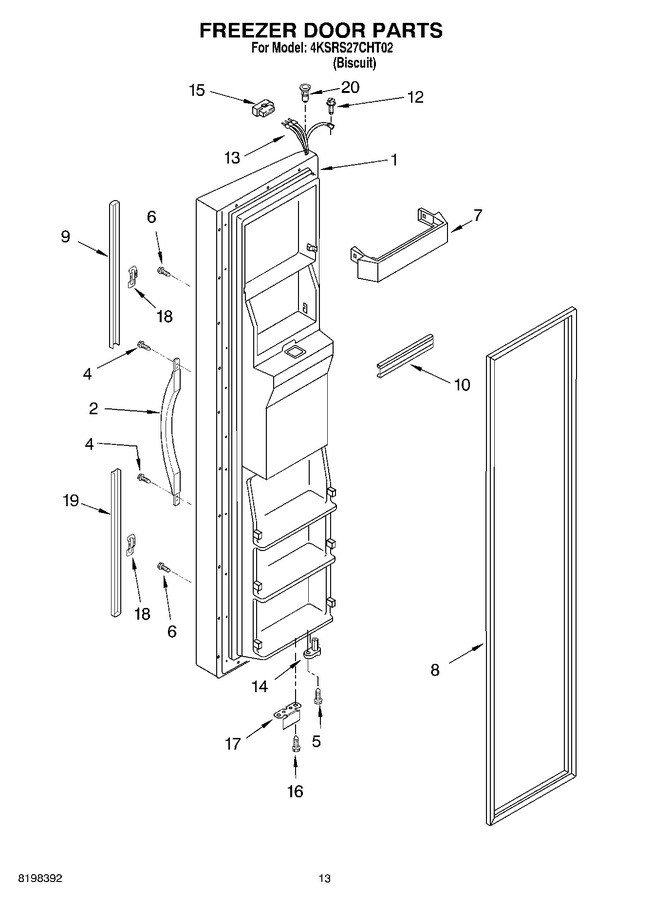

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214421T		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2217185T		Handle		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
6	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)   (Replaces: 2221303)				$ 325.70
9	2217187T		Trim, Door-top		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
12	WP489128		Screw   (Replaces: 488500)				$ 11.40
13	2200400		Wire Harness		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
15	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
16	WP489483		Screw   (Replaces: 489420)				$ 11.41
17	2206910		Bracket, Door Stop		Appelez-nous	-
18	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
19	2217186T		Trim, Door-bottom		Appelez-nous	-
20	WP2182179		Thimble-top   (Replaces: 2182179)			Immediately	$ 7.20
