Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP90767 Screw (7)   (Replaces: 300890) In-Stock Immediately $ 7.43

1 3178091 Shelf, Component Appelez-nous -
2 WP8203546 Block, Terminal   (Replaces: 258076) In-Stock Immediately $ 27.12

2 W10841059 Screw (2)   (Replaces: 98445) Appelez-nous -
3 3181919 Bushing Appelez-nous -
4 98106 Screw (2) Appelez-nous -
4 3178668 Switch, Latch Appelez-nous -
5 3178185 Insulator, Switch Appelez-nous -
6 3177662 Guard, Latch Appelez-nous -
6 254225 Screw (2) Appelez-nous -
6 WP3177991 Screw   (Replaces: 3177991) In-Stock Immediately $ 6.80

7 3179950 Screw (2) Appelez-nous -
7 3177970 Handle, Latch Appelez-nous -
8 311253 Knob, Latch Handle Appelez-nous -
8 WP488234 Screw   (Replaces: 4159334) Special Order $ 6.37

10 3178410 Latch, Mechanism Appelez-nous -
10 WP3177991 Screw (3)   (Replaces: 3177991) In-Stock Immediately $ 6.80

11 3177496 Plate, Mounting Appelez-nous -
12 3179777 Plug, Button Appelez-nous -
13 WP90767 Screw   (Replaces: 300890) In-Stock Immediately $ 7.43

13 3180332 Extension, Shelf Appelez-nous -
13 WP3177991 Screw (6)   (Replaces: 3177991) In-Stock Immediately $ 6.80

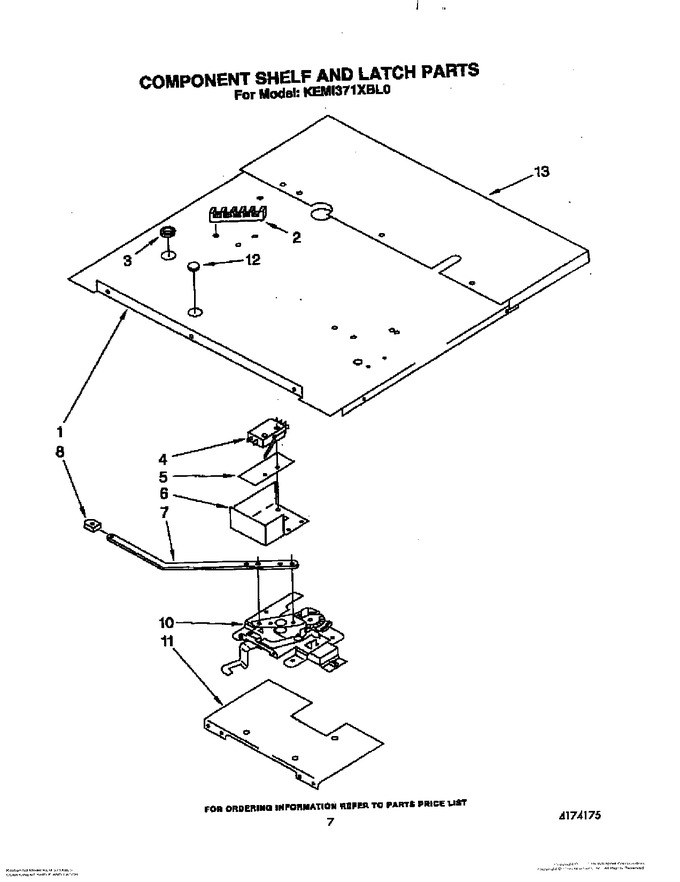

    View Diagram in Separate Window     Print Icon   Print Part List
