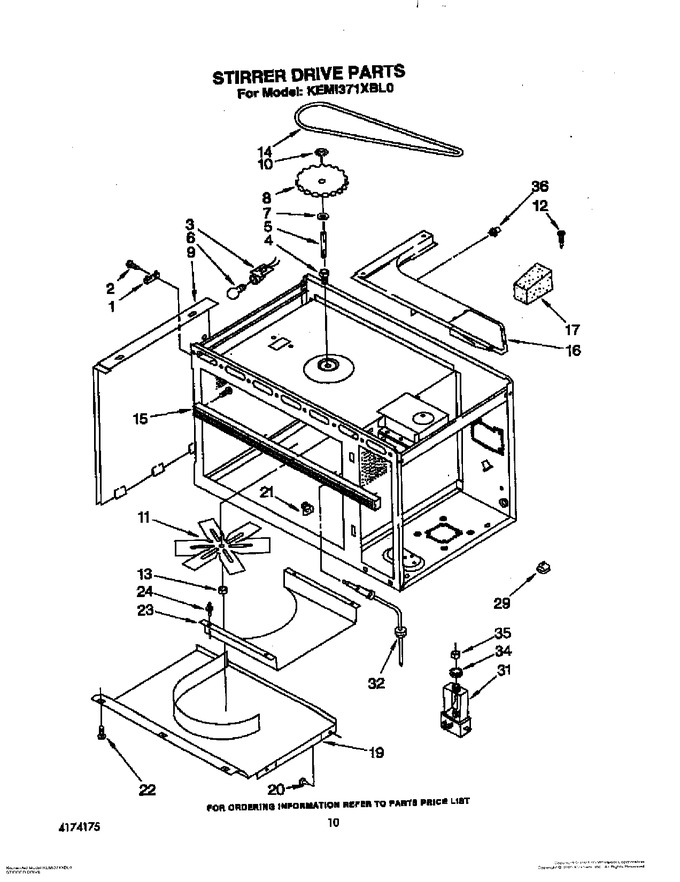

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313855		Thermal Fuse		Appelez-nous	-
2	312713		Screw (3)		Appelez-nous	-
3	330514		Socket, Light		Appelez-nous	-
3	WPW10068250		Screw (2)   (Replaces: 311777)				$ 3.84
4	312023		Bushing, Stirrer		Appelez-nous	-
5	312026		Shaft, Stirrer		Appelez-nous	-
6	WP3395618		Bulb, Light   (Replaces: 313969)			Immediately	$ 74.89
7	312025		Washer, Stirrer		Appelez-nous	-
8	311923		Pulley,		Appelez-nous	-
9	4170323		Screw (4)		Appelez-nous	-
9	3147004		Cover, Side		Appelez-nous	-
10	311999		``e`` Ring		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
12	310423		Fastener		Appelez-nous	-
13	WP487939		Nut 1/4-20   (Replaces: 311721)				$ 7.76
14	WP313646		Belt, Drive   (Replaces: 313646)				$ 79.86
15	3150025		Screw (3)		Appelez-nous	-
15	3149315		Grill, Air		Appelez-nous	-
16	3150039		Baffle, Air		Appelez-nous	-
17	3150090		Seal, Foam		Appelez-nous	-
19	313563		Cover, Stirrer		Appelez-nous	-
20	313740		Fastener, Cover (4)		Appelez-nous	-
21	WP3149478		Support, Rack (4)   (Replaces: 313653)				$ 9.07
22	313816		Screw, 8-32 X 1/2 (3)		Appelez-nous	-
23	313735		Plate, Tunning (includes Illus. No. 24)		Appelez-nous	-
24	313739		Support (4)		Appelez-nous	-
29	311311		Clip, Wire (2)		Appelez-nous	-
29	312713		Screw		Appelez-nous	-
31	661209		Jack, Probe		Appelez-nous	-
31	313679		Screw		Appelez-nous	-
32	313527		Probe, Temperature		Appelez-nous	-
34	313105		Washer		Appelez-nous	-
35	313104		Nut		Appelez-nous	-
36	313818		Screw (2)		Appelez-nous	-
36	3147060		Sensor, Gas		Appelez-nous	-
