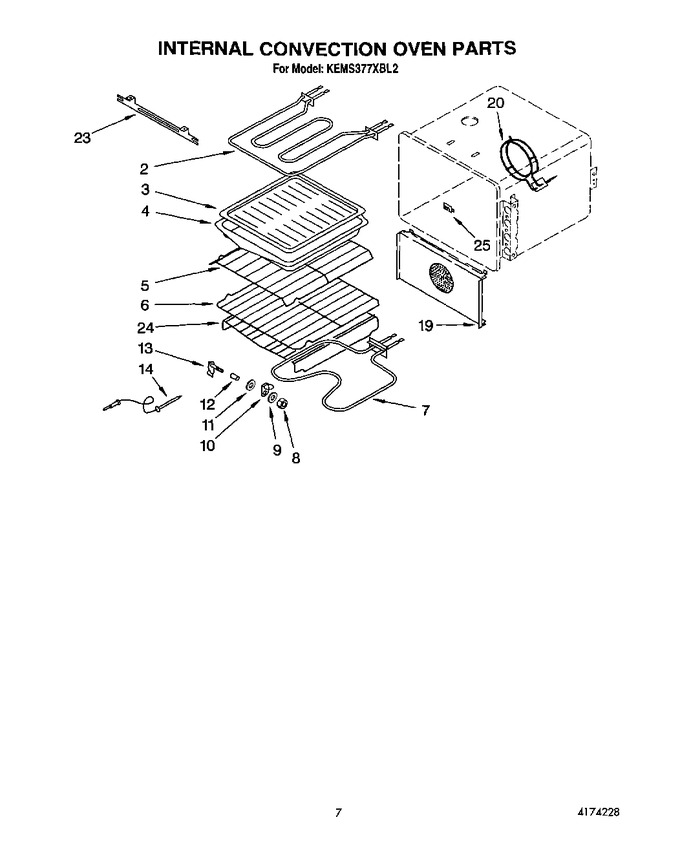

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 661415 | Element, Broil |
|
- | |||||
| 2 | 3179117 | Screw (2) |
|
- | |||||
| 3 | 4396923 | Grill, Broiler (Replaces: 3147563) |
|
Immediately | $ 54.64 | ||||
| 4 | 4396923 | Pan, Broiler (Replaces: 3147845) |
|
Immediately | $ 54.64 | ||||
| 5 | 3185307 | Rack, Offset |
|
- | |||||
| 6 | 3185308 | Rack, Oven (2) |
|
- | |||||
| 7 | WP661416 | Element, Bake (Replaces: 661416) |
|
$ 137.90 | |||||
| 7 | 3179117 | Screw (2) |
|
- | |||||
| 8 | 4167277 | Nut, Meat Probe |
|
- | |||||
| 9 | 4163975 | Gasket, Meat Probe |
|
- | |||||
| 10 | 4167266 | Probe Cover |
|
- | |||||
| 11 | 4159557 | Washer |
|
- | |||||
| 12 | 3179672 | Spacer - Tubing |
|
- | |||||
| 13 | 4173189 | Meat Probe Jack |
|
- | |||||
| 14 | 4167267 | Meat Probe |
|
- | |||||
| 19 | 3180815 | Cover, Fan |
|
- | |||||
| 19 | 3179117 | Screw (4) |
|
- | |||||
| 20 | 3179117 | Screw (3) |
|
- | |||||
| 20 | 3178517 | Element, Convection |
|
- | |||||
| 23 | 3179117 | Screw (2) |
|
- | |||||
| 23 | 3180694 | Bracket, Element |
|
- | |||||
| 24 | 3181534 | Rack, Roasting T/c |
|
- | |||||
| 25 | 4168203 | Cover, Capillary |
|
- | |||||
| 25 | 4159445 | Screw (1) |
|
- |
