Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3182288 Frame, Outer (white) Appelez-nous -
1 3182287 Frame, Outer (black) Appelez-nous -
2 3182384 Foam Seal (bottom) Appelez-nous -
3 3182381 Side Foam Seal (2) (white) Appelez-nous -
3 3182380 Side Foam Seal (2) (black) Appelez-nous -
4 3182382 Top Foam Seal (black) Appelez-nous -
4 3182383 Top Foam Seal (white) Appelez-nous -
5 313663 Rack, Wire Appelez-nous -
6 313614 Trim, Shelf (front) Appelez-nous -
7 313615 Trim, Shelf (rear) Appelez-nous -
8 313639 Shelf, Ceramic Appelez-nous -
9 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 7.43

9 3179973 Rail, (2) Appelez-nous -
10 3180456 Seal, Foam Appelez-nous -
11 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 7.43

11 3181733 Insert, Middle Vent Trim Appelez-nous -
12 3181968 Trim, Middle Vent (white Or Almond Model) Appelez-nous -
12 3181965 Trim, Middle Vent (black) Appelez-nous -
12 3180022 Trim, Middle Vent (screw (4)) Appelez-nous -
12 4173601 Trim, Middle Vent (screw (1)) Appelez-nous -
13 4168863 Screw (2) Appelez-nous -
13 3180022 Screw (4) Appelez-nous -
13 3181848 Brace, Center Vent Appelez-nous -
14 3180330 Support, Module Appelez-nous -
14 WP90767 Screw (12)   (Replaces: 300890) In-Stock Immediately $ 7.43

15 WP90767 Screw (9)   (Replaces: 300890) In-Stock Immediately $ 7.43

15 3180336 Back, Microwave Compartment Appelez-nous -
16 3182764 Ext. Module Support Appelez-nous -
16 WP90767 Screw (10)   (Replaces: 300890) In-Stock Immediately $ 7.43

17 3179972 Rail, Chassis (2) Appelez-nous -
17 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 7.43


    View Diagram in Separate Window     Print Icon   Print Part List

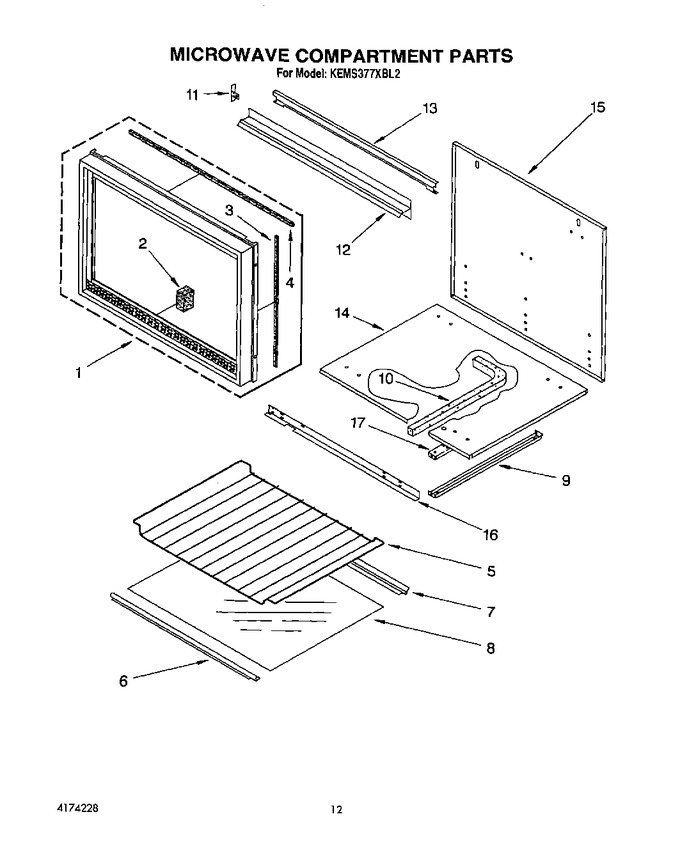

Diagram for KEMS377XBL2
