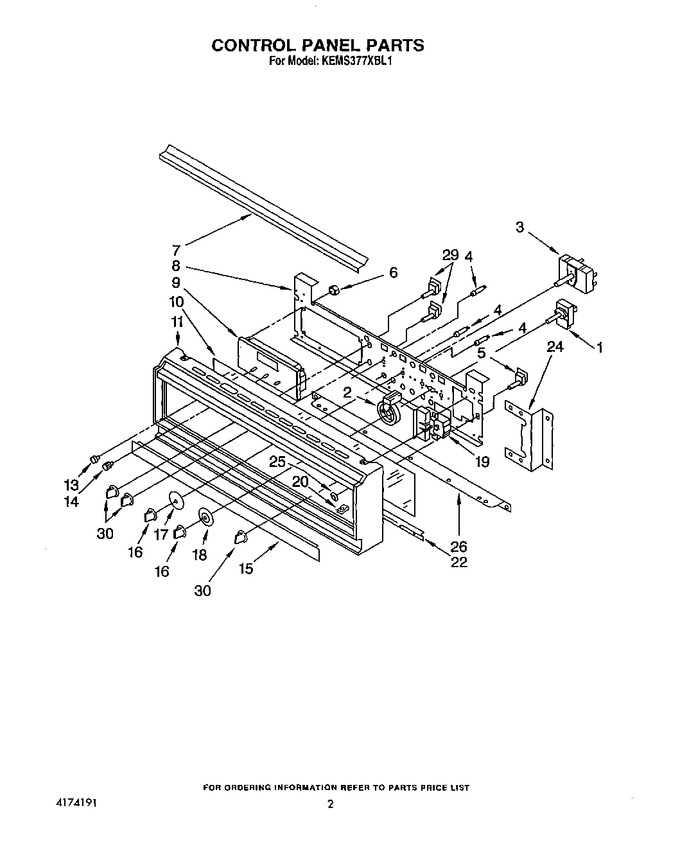

02 - Control Panel, Lit/optional


03 - Oven


04 - Convection Fan


05 - Lower Oven


06 - Internal Convection Oven


07 - Magnetron And Air Flow


08 - Stirrer Drive


09 - Microwave Compartment


10 - Microwave Control Panel


11 - Microwave Door And Latch


12 - Component Shelf And Latch


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	155023		Screw (2)			Immediately	$ 7.91
1	3178274		Thermostat		Appelez-nous	-
2	3179778		Housing, (2) Backlight		Appelez-nous	-
3	3178236		Switch, Selector		Appelez-nous	-
3	155023		Screw (2)			Immediately	$ 7.91
4	4168598		Light, Indicator (3)		Appelez-nous	-
5	3179708		Oven Light Switch (brass)		Appelez-nous	-
5	3179891		Oven Light Switch (black)		Appelez-nous	-
6	98788		Nut, Timer (4)		Appelez-nous	-
7	3180131		Insert, Top (white)		Appelez-nous	-
7	4173163		Insert, Top (black)		Appelez-nous	-
8	3177804		Bracket, Control Panel		Appelez-nous	-
9	3148111		Timer, Electronic		Appelez-nous	-
10	3181601		Glass, Control Panel (white)		Appelez-nous	-
10	3181285		Glass, Control Panel (black)		Appelez-nous	-
11	3177762		Frame, Control Panel (black)		Appelez-nous	-
11	3177763		Frame, Control Panel (white)		Appelez-nous	-
13	3179704		Knob, Timer (2)		Appelez-nous	-
14	3179705		Knob, Timer		Appelez-nous	-
15	3180449		Trim, Control Panel (black)		Appelez-nous	-
15	3180447		Trim, Control Panel (white)		Appelez-nous	-
16	3178400		Knob, Control (2)				$ 15.79
17	3178265		Disc, Selector		Appelez-nous	-
18	3178481		Disc, Thermostat		Appelez-nous	-
19	4173611		Meat Probe Indicator Assy.		Appelez-nous	-
20	4168838		Nut (3), Tinnerman		Appelez-nous	-
22	4159456		Screw (6)		Appelez-nous	-
22	4167590		Retainer (2) Glass		Appelez-nous	-
24	3177747		Bracket, Control Panel		Appelez-nous	-
24	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
25	3179707		Bezel, Switch (chrome)		Appelez-nous	-
25	4169372		Bezel, Switch (black)		Appelez-nous	-
26	3177650		Support, Frame		Appelez-nous	-
26	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.80
26	3179847		Screw		Appelez-nous	-
29	3178126		Switch, Rotory (2)		Appelez-nous	-
30	3180844		Clip, Spacer		Appelez-nous	-
30	4163840		Knob, (3) Meat Probe Auto-time Maxi-broil		Appelez-nous	-
	LIT3180512		Installation Instructions		Appelez-nous	-
	LIT3181718		Microwave Oven Use & Care Guide		Appelez-nous	-
	LIT3181849		Tech Sheet		Appelez-nous	-
	LIT4174191		Repair Parts List		Appelez-nous	-
	LIT3150693		Cookbook, Convection Oven		Appelez-nous	-
	LIT3147005		Cookbook		Appelez-nous	-
	LIT3180510		Convection Oven Use & Care Guide		Appelez-nous	-
