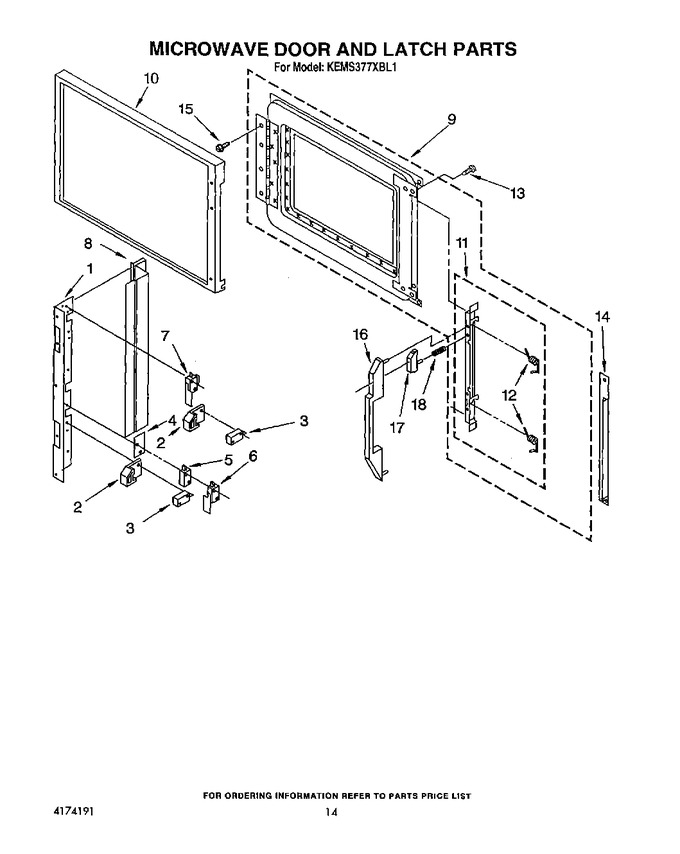

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch		Appelez-nous	-
1	309080		Screw (ground) 8-32 X 3/8		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	814037		(alt.)   (Replaces: 313125)				$ 85.39
3	312717		Screw 4-40x3/4 (8)		Appelez-nous	-
3	814037		Primary Switch (2) Interlock   (Replaces: 661146)				$ 85.39
4	313126		Insulator		Appelez-nous	-
5	313075		(alt.)		Appelez-nous	-
5	661144		Switch, Monitor/ Oven Light		Appelez-nous	-
5	313123		(alt.)		Appelez-nous	-
6	313076		(alt.)		Appelez-nous	-
6	310211		Screw, 4-40 X 1 (2)		Appelez-nous	-
6	313124		(alt.)		Appelez-nous	-
6	661145		Switch, Monitor/ Oven Light		Appelez-nous	-
7	312717		Screw (2) 4-40 X 3/4		Appelez-nous	-
7	313120		Switch, Electronic		Appelez-nous	-
8	3149424		Shield		Appelez-nous	-
8	313740		Fastener		Appelez-nous	-
9	3171806		Inner Door Asm. (white Unit)		Appelez-nous	-
9	313823		Inner Door Asm. (screw, 8-32 (4))		Appelez-nous	-
9	3171012		Inner Door Asm. (black Unit)		Appelez-nous	-
10	3172227		Outer Door Asm. (black Unit)		Appelez-nous	-
10	3171816		Outer Door Asm. (white Unit)		Appelez-nous	-
11	329066		Latch, Complete		Appelez-nous	-
11	303776		Screw (2) 8-32 X 5/16   (Replaces: 313811)		Appelez-nous	-
12	311352		Spring, Torsion (2)		Appelez-nous	-
13	313820		Screw (2)		Appelez-nous	-
14	313823		End Cap (screw 8-32 (4))		Appelez-nous	-
14	3148297		End Cap (black)		Appelez-nous	-
14	3148298		End Cap (white)		Appelez-nous	-
15	WPW10068250		Screw, 8-32 X .29 (4)   (Replaces: 311777)				$ 3.84
16	313823		Handle, Door (screw 8-32 (4))		Appelez-nous	-
16	314169		Handle, Door (black)		Appelez-nous	-
16	3149218		Handle, Door (white)		Appelez-nous	-
17	3149638		Button, Door Handle (white)		Appelez-nous	-
17	3149637		Button, Door Handle (black)		Appelez-nous	-
18	310197		Spring, Compression		Appelez-nous	-
