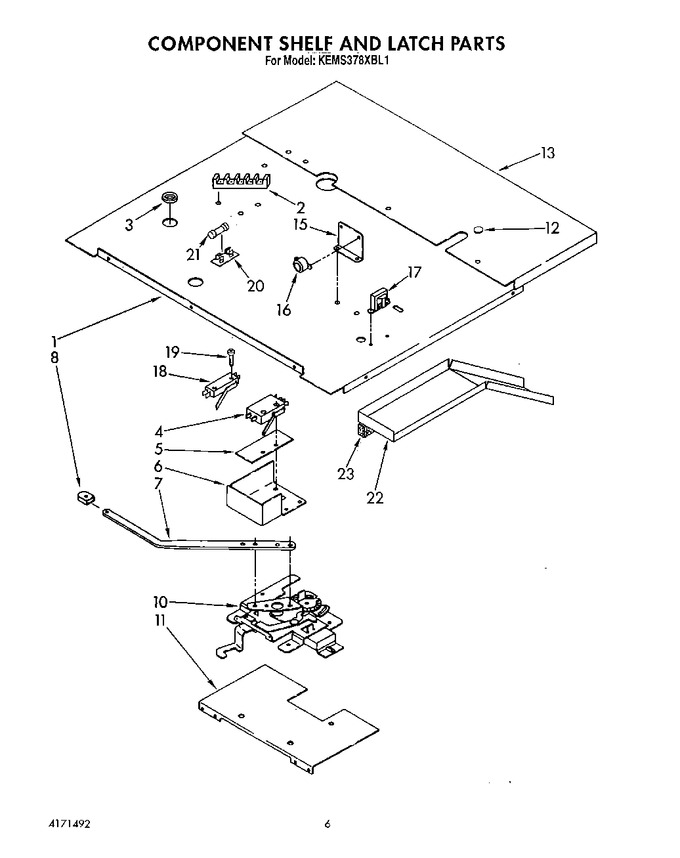

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (7) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 1 | 3178091 | Shelf, Component |
|
- | |||||
| 2 | W10841059 | Screw (2) (Replaces: 98445) |
|
- | |||||
| 2 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 3 | 3181919 | Bushing, Electric |
|
- | |||||
| 4 | 3178668 | Switch, Latch |
|
- | |||||
| 4 | 3177988 | Screw (2) |
|
- | |||||
| 5 | 3178185 | Insulator, Switch |
|
- | |||||
| 6 | 254225 | Screw (2) |
|
- | |||||
| 6 | WP3177991 | Screw (1) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 6 | 3177662 | Guard, Latch |
|
- | |||||
| 7 | 3181963 | Handle, Latch |
|
- | |||||
| 8 | 3183294 | Screw |
|
- | |||||
| 8 | 3183293 | Knob, Latch Handle |
|
- | |||||
| 10 | 3178410 | Latch, Mechanism |
|
- | |||||
| 10 | WP3177991 | Screw (3) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 11 | 3177496 | Plate, Mounting |
|
- | |||||
| 12 | 3179777 | Plug, Button |
|
- | |||||
| 13 | 3180332 | Extension, Shelf |
|
- | |||||
| 13 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 13 | WP3177991 | Screw (7) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 15 | 254225 | Screw, |
|
- | |||||
| 15 | 3179695 | Bracket, Buzzer |
|
- | |||||
| 16 | 3179914 | Buzzer, Meat Probe |
|
- | |||||
| 16 | 3180129 | Screw (2) |
|
- | |||||
| 17 | WP3177991 | Screw (4) (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 17 | 3179532 | Transformer |
|
- | |||||
| 18 | 3178187 | Switch, Latch |
|
- | |||||
| 19 | 3177988 | Screw (2) |
|
- | |||||
| 20 | 4454949 | Block, Fuse (Replaces: 314121) |
|
$ 85.72 | |||||
| 21 | WPW10017410 | Fuse (Replaces: 309796) |
|
Immediately | $ 20.01 | ||||
| 22 | 3150736 | Baffle, Module |
|
- | |||||
| 22 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.43 | ||||
| 23 | 3180455 | Seal, Foam |
|
- |
