SELECT A DIAGRAM

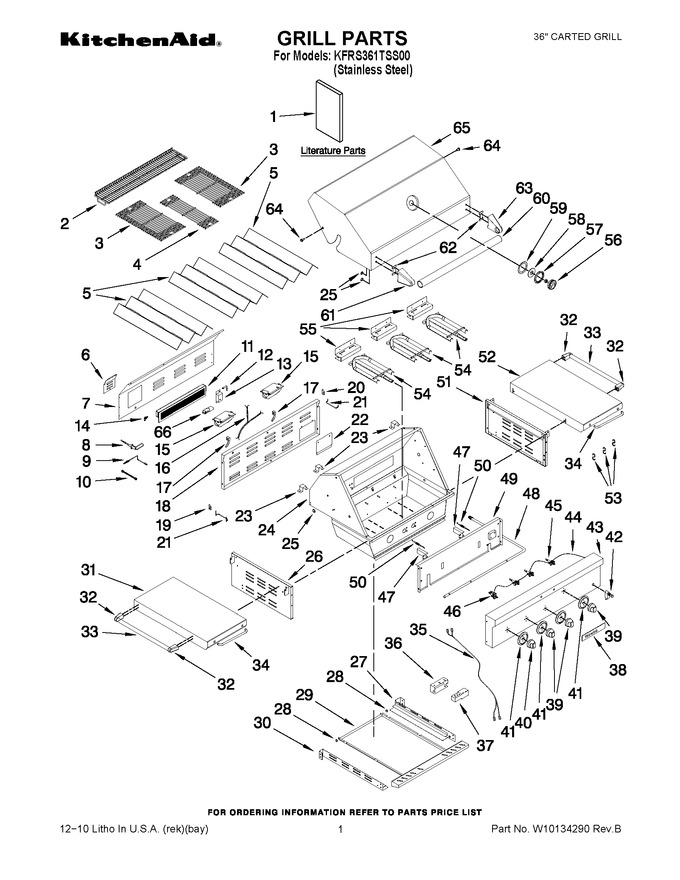

01 - Grill Parts


02 - Base Parts


03 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110725		Use & Care Guide		Appelez-nous	-
1	W10110730		Conversion Instr. (lp To Natural)		Appelez-nous	-
2	W10128611		Rack, Warming		Appelez-nous	-
3	W10136417		Grate, Large		Appelez-nous	-
4	W10128616		Grate, Small		Appelez-nous	-
5	W10128618		Plate, Sear		Appelez-nous	-
6	W10128619		Cover, Rear		Appelez-nous	-
7	W10128620		Panel, Rear		Appelez-nous	-
8	W10128621		Electrode, Rear Burner				$ 21.97
9	W10128622		Thermocouple, Rear Burner		Appelez-nous	-
10	W10128623		Flex Tube, Rear Burner		Appelez-nous	-
11	W10128624		Burner, Rear				$ 216.60
12	W10128625		Bracket, Rear Thermocouple		Appelez-nous	-
13	W10128626		Cover, Rear Thermocouple		Appelez-nous	-
14	W10128627		Orifice, Rear Burner		Appelez-nous	-
15	W10128628		Light, Grill		Appelez-nous	-
16	W10136418		Harness, Wire Lights		Appelez-nous	-
17	W10128631		Socket, Light		Appelez-nous	-
18	W10128632		Panel, Access		Appelez-nous	-
19	W10128634		Bracket, Panel Left		Appelez-nous	-
20	W10128635		Bracket, Panel Right		Appelez-nous	-
21	W10128636		Bracket, Warming Rack		Appelez-nous	-
22	W10128637		Cover, Access Panel		Appelez-nous	-
23	W10128638		Clip, Wire		Appelez-nous	-
24	W10136420		Hood Assy		Appelez-nous	-
25	W10128640		Hole Plug		Appelez-nous	-
26	W10128642		Panel, Side Left		Appelez-nous	-
27	W10128644		Bracket, Grease Tray (right)		Appelez-nous	-
28	W10128655		Roller, Drip Tray				$ 63.78
29	W10128656		Drip Tray Assy (includes Rollers)		Appelez-nous	-
30	W11286570		Bracket, Grease Tray (left)		Appelez-nous	-
31	W10128658		Shelf, Side (lf)		Appelez-nous	-
32	W10128659		Bracket, Handle		Appelez-nous	-
33	W10128660		Handle, Shelf		Appelez-nous	-
34	W10128662		Bar, Tool		Appelez-nous	-
35	W10128663		Harness, Wire Light		Appelez-nous	-
36	W10128664		Cover, Igniter		Appelez-nous	-
37	W10281246		Igniter		Appelez-nous	-
38	W10128751		Nameplate		Appelez-nous	-
39	W10128753		Knob, Main Burner		Appelez-nous	-
40	W10128756		Knob, Rear Burner		Appelez-nous	-
41	W10128759		Bezel, Knob		Appelez-nous	-
42	W10128761		Switch, Light		Appelez-nous	-
43	W10136433		Panel, Control		Appelez-nous	-
44	W10134817		Harness, Wire Control		Appelez-nous	-
45	WPW10128764		Valve, Main Brnr   (Replaces: W10128764)				$ 299.61
46	W10128766		Valve, Rear Brnr		Appelez-nous	-
47	W10128767		Igniter, Main Gas		Appelez-nous	-
48	W10133871		Manifold		Appelez-nous	-
49	W10137063		Baffle, Front		Appelez-nous	-
50	WPW10128770		Electrode, Main Burner   (Replaces: W10128770)				$ 20.33
50	W10136434		Electrode (main Burner)				$ 35.71
51	W10128771		Side Panel, Right		Appelez-nous	-
52	W10128776		Shelf, Side (rt)		Appelez-nous	-
53	W10128774		Hook		Appelez-nous	-
54	W10128775		Burner, Main				$ 288.82
55	W10128776		Bracket, Main Brnr		Appelez-nous	-
56	W10128777		Thermometer				$ 62.56
57	W10128779		Bezel, Thermometer		Appelez-nous	-
58	W10128780		Insulator, Thermometer (small)		Appelez-nous	-
59	W10128782		Insulator, Thermometer (large)		Appelez-nous	-
60	W10128783		Handle, Hood		Appelez-nous	-
61	W10128785		Endcap, Handle (left)		Appelez-nous	-
62	W10128786		Spacer, Handle		Appelez-nous	-
63	W10128787		Endcap, Handle (right)		Appelez-nous	-
64	W10128788		Hinge, Lid				$ 12.14
65	W10128789		Hood		Appelez-nous	-
66	8204670		Bulb, Light			Immediately	$ 27.23

    View Diagram in Separate Window       Print Part List
