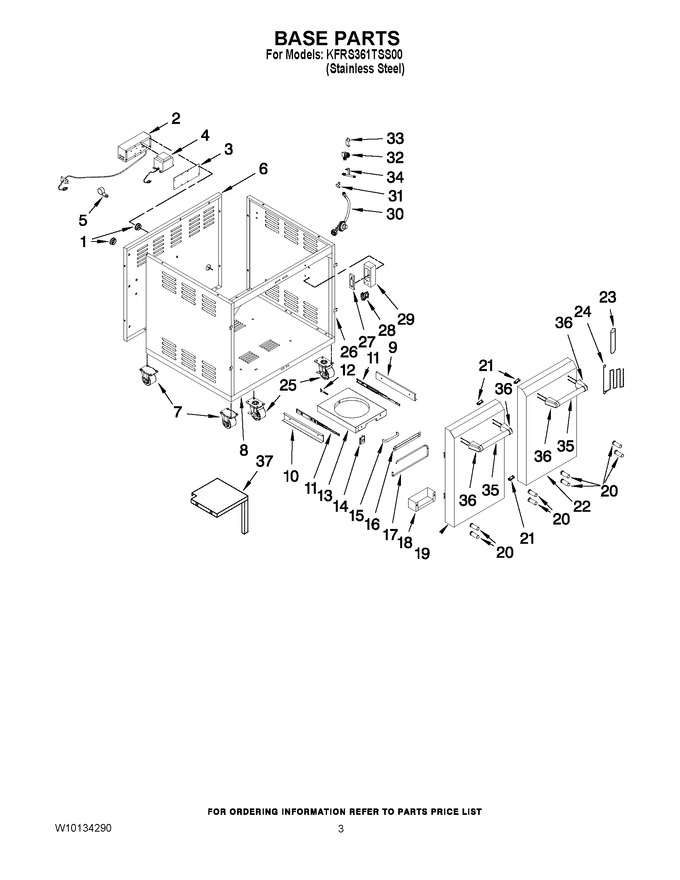

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10128666		Ring, Rubber		Appelez-nous	-
2	W10128667		Box, Transformer		Appelez-nous	-
3	W10128668		Cover, Transformr Box		Appelez-nous	-
4	W10128669		Transformer		Appelez-nous	-
5	7111P002-60		Clamp, Wire   (Replaces: W10128670)		Appelez-nous	-
6	W10136421		Panel, Rear		Appelez-nous	-
7	W10128672		Caster		Appelez-nous	-
8	W10136424		Panel, Bottom		Appelez-nous	-
9	W10128674		Bracket, Tank Tray (right)		Appelez-nous	-
10	W10128675		Bracket, Tank Tray (left)		Appelez-nous	-
11	W10128676		Slide, Tank Tray		Appelez-nous	-
12	W10128677		Bolt, Tank		Appelez-nous	-
13	W10128678		Tray, Tank		Appelez-nous	-
14	W10128679		Lock, Tank Tray		Appelez-nous	-
15	W10128680		Handle, Tank Tray		Appelez-nous	-
16	W10128681		Bracket, Towel Rack		Appelez-nous	-
17	W10128686		Rack, Towel		Appelez-nous	-
18	W10136429		Tray, Condiment		Appelez-nous	-
19	W10136430		Door, Left		Appelez-nous	-
20	W10128696		Hole Plug		Appelez-nous	-
21	W10128697		Magnet, Door		Appelez-nous	-
22	W10136431		Door, Right		Appelez-nous	-
23	W10128703		Bag, Lighting Rod		Appelez-nous	-
24	W10128704		Rod, Lighting		Appelez-nous	-
25	W10128705		Caster, W/brake		Appelez-nous	-
26	W10136432		Panel, Side Assy		Appelez-nous	-
27	W10128711		Cover, Battery Box		Appelez-nous	-
28	W10128715		Box, Battery		Appelez-nous	-
29	W10128719		Case, Battery Box		Appelez-nous	-
30	W10128746		Regulator				$ 33.26
31	W10128747		Fixture, Manifold		Appelez-nous	-
32	W10128748		Connector (brass)		Appelez-nous	-
33	W10128749		Base, Manifold Fixture		Appelez-nous	-
34	W10128750		Commutator, Manifold		Appelez-nous	-
35	W10128661		Handle, Door		Appelez-nous	-
36	W10128659		Bracket, Handle		Appelez-nous	-
37	W10136427		Rack, Storage		Appelez-nous	-
