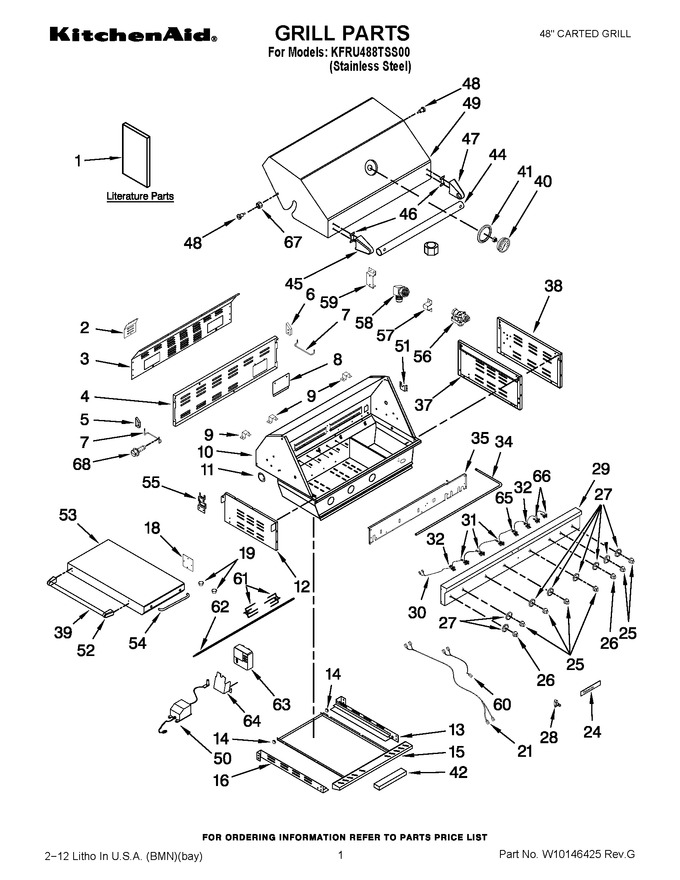

01 - Grill Parts
02 - Base Parts
03 - Drawer Parts
04 - Internal Warming Drawer Parts
05 - Burners, Grates, And Lights Parts
06 - Side Burner Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10110730 | Conversion Instr. (lp To Natural) |
|
- | |||||
| 1 | W10110725 | Use & Care Guide |
|
- | |||||
| 2 | W10128619 | Cover, Rear |
|
- | |||||
| 3 | W10140249 | Panel, Rear |
|
- | |||||
| 4 | W10140252 | Panel, Access |
|
- | |||||
| 5 | W10128634 | Bracket, Panel Left |
|
- | |||||
| 6 | W10128635 | Bracket, Panel Right |
|
- | |||||
| 7 | W10128636 | Bracket, Warming Rack (left/right) |
|
- | |||||
| 7 | W10140243 | Bracket, Warming Rack (middle) |
|
- | |||||
| 8 | W10128637 | Cover, Access Panel |
|
- | |||||
| 9 | W10128638 | Clip, Wire |
|
- | |||||
| 10 | W10140260 | Hood Assy |
|
- | |||||
| 11 | W10128640 | Hole Plug |
|
- | |||||
| 12 | W10137906 | Panel, Side Left |
|
- | |||||
| 13 | W10128644 | Bracket, Grease Tray (right) |
|
- | |||||
| 14 | W10128655 | Roller, Drip Tray |
|
$ 63.78 | |||||
| 15 | W10133870 | Drip Tray Assy (includes Rollers) (large) |
|
- | |||||
| 15 | W10140262 | Drip Tray Assy (includes Rollers) (small) |
|
- | |||||
| 16 | W10128657 | Bracket, Grease Tray (left) |
|
- | |||||
| 18 | W10132690 | Cover, Wire Terminal |
|
- | |||||
| 19 | W10132692 | Bushing (plastic (no.sb19)) |
|
- | |||||
| 19 | W10132691 | Bushing (plastic (no.sb22)) |
|
- | |||||
| 21 | W10140245 | Harness, Wire Light |
|
- | |||||
| 24 | W10128751 | Nameplate |
|
- | |||||
| 25 | W10134821 | Knob, Main Burner |
|
- | |||||
| 26 | W10134822 | Knob, Rear Burner |
|
- | |||||
| 27 | W10134820 | Bezel, Knob |
|
- | |||||
| 28 | W10128761 | Switch, Light |
|
- | |||||
| 29 | W10140266 | Panel, Control |
|
- | |||||
| 30 | W10140236 | Harness, Wire Control |
|
- | |||||
| 31 | W10140234 | Valve, Main Brnr |
|
- | |||||
| 32 | W10128766 | Valve, Rear Brnr |
|
- | |||||
| 34 | W10140213 | Manifold |
|
- | |||||
| 35 | W10140251 | Baffle, Front |
|
- | |||||
| 37 | W10132700 | Side Panel, Right |
|
- | |||||
| 38 | W10137909 | Panel, Outer (rt) |
|
- | |||||
| 39 | W10128660 | Bar, Handle |
|
- | |||||
| 40 | W10128777 | Thermometer |
|
$ 62.56 | |||||
| 41 | W10128779 | Bezel, Thermometer |
|
- | |||||
| 42 | W10140254 | Panel, Grease Tray |
|
- | |||||
| 44 | W10140208 | Handle, Hood |
|
- | |||||
| 45 | W10128785 | Endcap, Handle (left) |
|
- | |||||
| 46 | W10128786 | Spacer, Handle |
|
- | |||||
| 47 | W10128787 | Endcap, Handle (rlght) |
|
- | |||||
| 48 | W10128788 | Hinge, Lid |
|
$ 12.14 | |||||
| 49 | W10140259 | Hood |
|
- | |||||
| 50 | WPW10247115 | Transformer, Rotisserie Motor (Replaces: W10134987) |
|
$ 188.98 | |||||
| 51 | W10134988 | Bracket, Spit |
|
- | |||||
| 52 | W10128659 | Bracket, Handle |
|
- | |||||
| 53 | W10136946 | Shelf, Side (lf) |
|
- | |||||
| 54 | W10136956 | Bar, Tool |
|
- | |||||
| 55 | W10132695 | Brkt, Trnsfrmr (btm) |
|
- | |||||
| 56 | WPW10132702 | Regulator (ng) (Replaces: W10132702) |
|
$ 322.11 | |||||
| 57 | W10128747 | Fixture, Manifold |
|
- | |||||
| 58 | W10128748 | Connector (brass) |
|
- | |||||
| 59 | W10128749 | Base, Manifold Fixture |
|
- | |||||
| 60 | W10140247 | Harness, Wire |
|
- | |||||
| 61 | W10134981 | Fork, Spit |
|
- | |||||
| 62 | W10140240 | Rod, Spit |
|
- | |||||
| 63 | W10134985 | Motor, Rotisserie |
|
- | |||||
| 64 | W10134986 | Bracket, Rot. Mtr. |
|
- | |||||
| 65 | W10137901 | Valve, Sear Burner |
|
- | |||||
| 66 | W10137902 | Valve, Side Burner |
|
- | |||||
| 67 | W10140228 | Nut, 1/4`` |
|
- | |||||
| 68 | W10140218 | Screw, 1/4 X 35 |
|
- |
