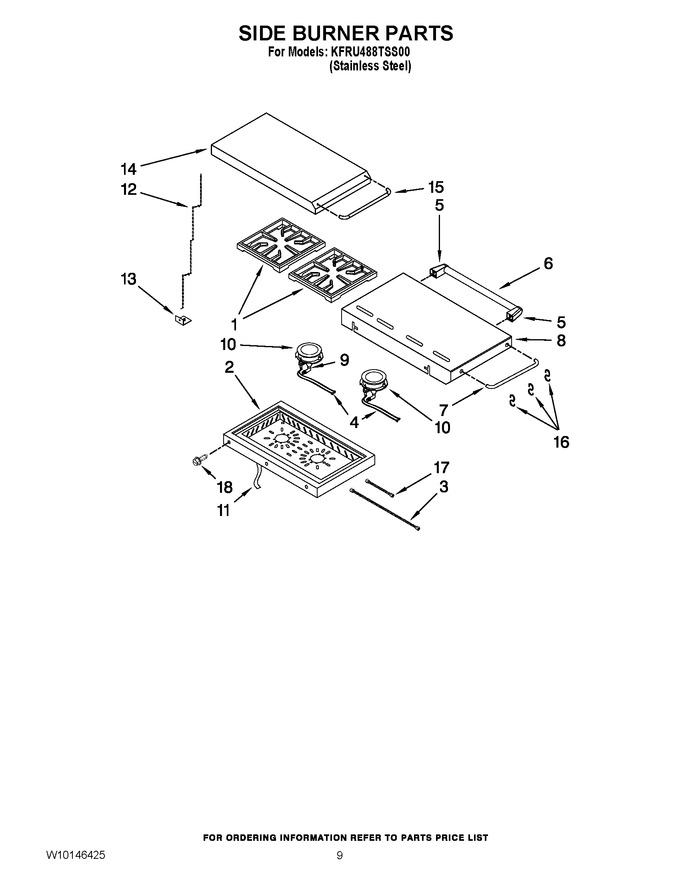

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10138024 | Grate, Side Burner |
|
- | |||||
| 2 | W10140271 | Shelf, Side Burner |
|
- | |||||
| 3 | W10137910 | Tube, Side Burner |
|
- | |||||
| 4 | W10137918 | Igniter (burner, Rear) |
|
- | |||||
| 4 | W10136947 | Igniter (burner, Front) |
|
- | |||||
| 5 | W10137052 | Bracket, Handle |
|
- | |||||
| 6 | W10138660 | Handle, Shelf |
|
- | |||||
| 7 | W10136956 | Bar, Tool |
|
- | |||||
| 8 | W10137923 | Shelf, Side (left) |
|
- | |||||
| 9 | W10137922 | Elbow, Orifice |
|
- | |||||
| 10 | W10137076 | Manifold, Side Brn |
|
- | |||||
| 11 | W10137915 | Hose, Side Burner |
|
- | |||||
| 12 | W10138027 | Chain, Lid |
|
- | |||||
| 13 | W10138028 | Stator, Chain |
|
- | |||||
| 14 | W10138026 | Lid, Side Burner |
|
- | |||||
| 15 | W10138025 | Bar, Tool |
|
- | |||||
| 16 | W10128774 | Hook |
|
- | |||||
| 17 | W10137916 | Tube, Side Brnr |
|
- | |||||
| 18 | W10140220 | Screw, 5/32 X 10 |
|
- |
