SELECT A DIAGRAM

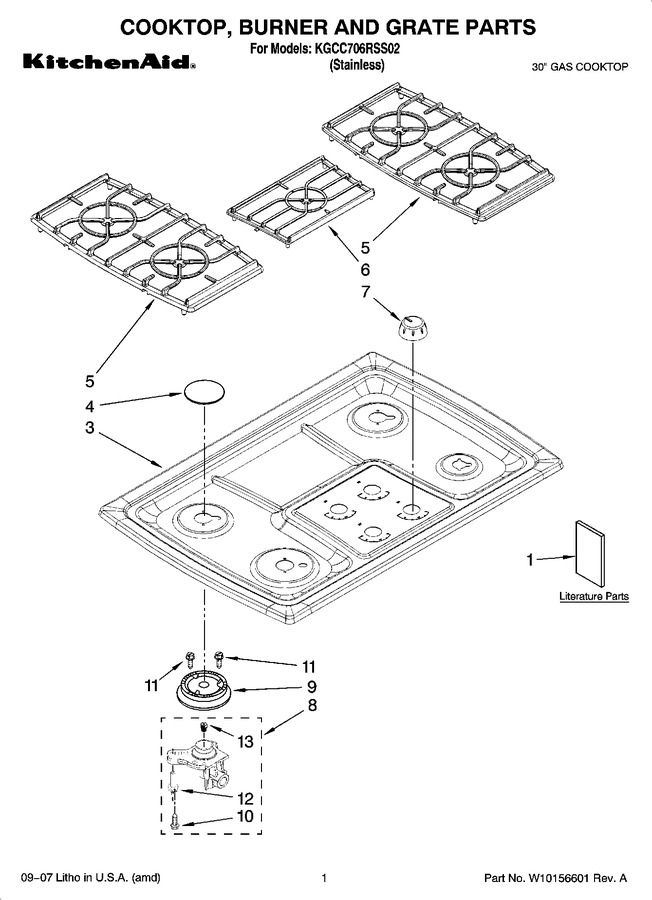

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10131955		Installation Instructions		Appelez-nous	-
1	8304571		Undercounter Installation		Appelez-nous	-
1	W10086190		Use & Care Guide		Appelez-nous	-
1	8286620		L.p. Conversion Instructions		Appelez-nous	-
1	3191638		Safe Cooking Tips (english)		Appelez-nous	-
1	9759133		Safe Cooking Tips (french)		Appelez-nous	-
3	8285781CC		Cooktop		Appelez-nous	-
4	WP8286156CB		Burner Caps (lf)   (Replaces: 8286156CB)				$ 112.29
4	WP8286153CB		Burner Caps (rf)   (Replaces: 8286153CB)				$ 65.06
4	WP8286154CB		Burner Caps (lr)   (Replaces: 8286154CB)				$ 81.84
4	WP8286155CB		Burner Caps (rr)   (Replaces: 8286155CB)				$ 109.94
5	8285876CB		Grate, Burner				$ 99.26
6	8285877CB		Grate, Center				$ 87.95
7	8286094CM		Knob, Control				$ 15.65
8	WPW10128448		Holder, Orifice (rf)   (Replaces: W10128448)			Immediately	$ 105.57
8	WPW10128445		Holder, Orifice (lf)   (Replaces: W10128445)				$ 107.19
8	8287052		Holder, Orifice (rr)				$ 45.10
8	WPW10128450		Holder, Orifice (lr)   (Replaces: W10128450)				$ 111.92
9	WPW10406878		Head, Burner (lf)   (Replaces: 8286183)				$ 96.73
9	WPW10406797		Head, Burner (rr)   (Replaces: 8286182)				$ 83.62
9	WPW10406283		Head, Burner (lr)   (Replaces: 8286184)				$ 70.22
9	WPW10406243		Head, Burner (rf)   (Replaces: 8286181)			Immediately	$ 35.17
10	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
11	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 7.70
12	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
13	8286474		Orifice (lf)				$ 85.08
13	WP3192529		Orifice (lr & Rf)   (Replaces: 3192529)				$ 90.67
13	WP3192523		Orifice (lr)   (Replaces: 3192523)				$ 84.20
13	8286551		Orifice (rr)				$ 94.46

    View Diagram in Separate Window       Print Part List
