SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

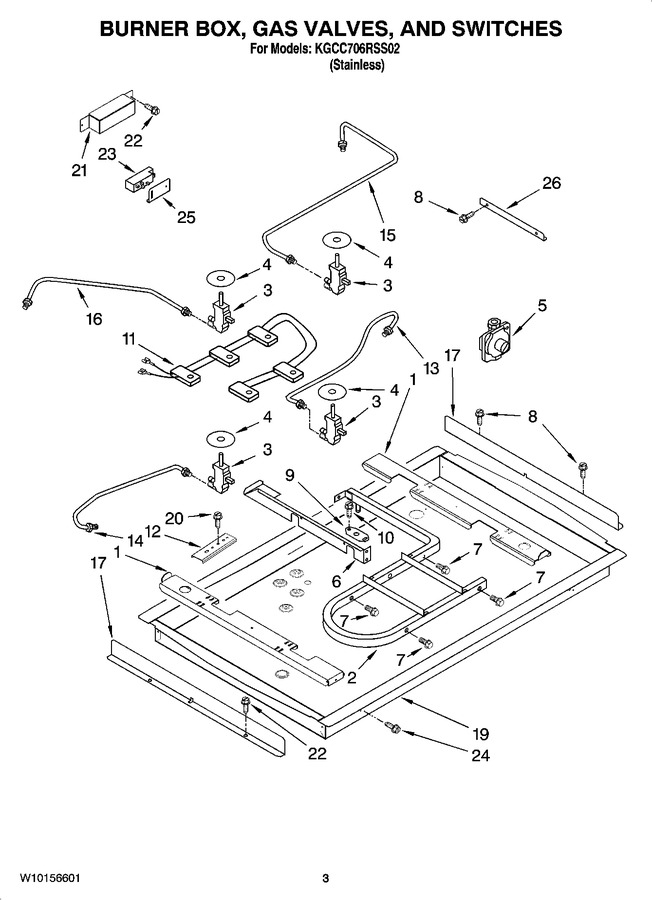

02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285796		Rail, Burner		Appelez-nous	-
2	8286069		Pipe, Manifold				$ 295.39
3	8286560		Valve, Gas Burner (yellow)				$ 123.39
3	WP4456817		Valve, Gas Burner (black)   (Replaces: 4456817)				$ 300.70
3	8286559		Valve, Gas Burner (white (1))				$ 123.31
3	8286561		Valve, Gas Burner (orange)				$ 291.38
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 86.74
5	W11170853		Regulator, Pressure   (Replaces: W10131956)				$ 297.23
6	8285791		Rail, Center		Appelez-nous	-
7	8523704		Bolt, Gas Valve		Appelez-nous	-
8	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.88
9	3192491		Bracket, Mainfold		Appelez-nous	-
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
11	WP4456905		Harness & Switches   (Replaces: 4456905)			Immediately	$ 176.83
12	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 83.57
13	8285793		Tubing, Gas Burner (rf)				$ 170.41
14	8285794		Tubing, Gas Burner (lf)				$ 188.74
15	8285792		Tubing, Gas Burner (rr)				$ 168.69
16	8285795		Tubing, Gas Burner (lr)				$ 165.92
17	3191462		Shield, Heat (2)		Appelez-nous	-
19	9760837		Burner Box		Appelez-nous	-
20	WP3400093		Screw   (Replaces: 3400093)				$ 6.80
21	8285788		Shield, Heat		Appelez-nous	-
22	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.80
23	WPW10110491		Module, Spark   (Replaces: 8522423)			Immediately	$ 290.17
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
25	4455837		Bracket, Spark Module				$ 73.60
26	9759145		Bracket, Main Support				$ 27.46
	4456627		Harness, Ignitor 28`` (2)				$ 198.59
	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.80
	W10392007		Cord, Power   (Replaces: 9763116)				$ 101.06
	4456626		Harness, Ignitor 15`` (2)				$ 69.66
	WP8286320		Spud Kit   (Replaces: 8286320)				$ 121.56

    View Diagram in Separate Window       Print Part List
