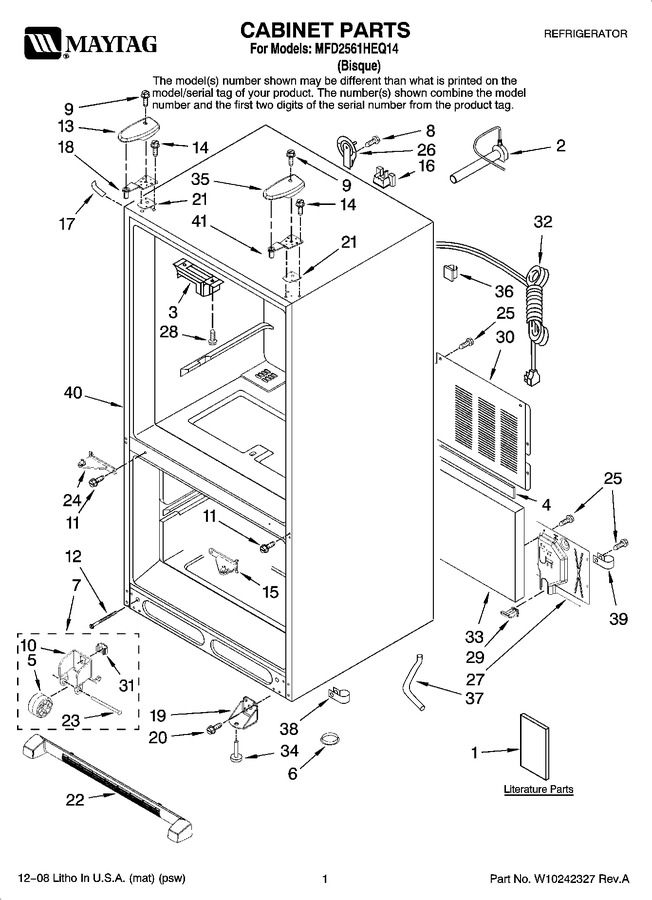

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67006616 | Tech Sheet |
|
- | |||||
| 1 | W10137641 | Owners Manual |
|
- | |||||
| 1 | W10123430 | Tag, Energy |
|
- | |||||
| 2 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 107.87 | ||||
| 3 | WP67003405 | Block, Pivot (Replaces: 67003405) |
|
Immediately | $ 7.39 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | WP10450603 | Roller (Replaces: 67005127) |
|
Immediately | $ 7.44 | ||||
| 6 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 7 | 67006118 | Roller Assy. (2) |
|
- | |||||
| 8 | WP98165 | Screw (Replaces: 67006287) |
|
$ 7.71 | |||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 6.80 | ||||
| 10 | 12456801V | Bracket, Roller (Replaces: 12456801) |
|
$ 47.79 | |||||
| 11 | W11573362 | Screw (6) (Replaces: 67006380) |
|
$ 13.25 | |||||
| 12 | 71003131 | Bolt, Adjusting (front) (Replaces: 67006611) |
|
Immediately | $ 6.37 | ||||
| 13 | 12684201C | Cover, Left Hinge (bisque) |
|
- | |||||
| 14 | WP489349 | Screw (6) (Replaces: 67006303) |
|
Immediately | $ 7.59 | ||||
| 15 | 67006379 | Hinge, Center (rt) (white) |
|
- | |||||
| 16 | 67004092 | Block, Filter (2) |
|
- | |||||
| 17 | 67003486 | Cover, Corner (bisque) |
|
- | |||||
| 18 | WP12566607ED | Hinge, Top Left (Replaces: 12566605ED) |
|
$ 81.98 | |||||
| 19 | 12906303WD | Bracket, Foot (2) (Replaces: 67007174) |
|
$ 79.72 | |||||
| 20 | 67006564 | Screw |
|
Immediately | $ 7.34 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | 67006376 | Grille, Toe (bisque) |
|
- | |||||
| 23 | M1205302 | Pin |
|
$ 5.85 | |||||
| 24 | W10918113 | Hinge, Center (lt) (white) (Replaces: 67006277) |
|
$ 88.13 | |||||
| 25 | 67006425 | Screw (10) |
|
Immediately | $ 6.57 | ||||
| 26 | 12726003 | Cover, Water Line (Replaces: 67003331) |
|
$ 17.27 | |||||
| 27 | 67004098 | Cover, Water Valve |
|
- | |||||
| 28 | WP7101P126-60 | Screw (2) (Replaces: 67006669) |
|
Immediately | $ 7.52 | ||||
| 29 | 12831101 | Sweep, Dual Tube (Replaces: 67004101) |
|
$ 11.73 | |||||
| 30 | 67006101 | Cover, Unit |
|
$ 76.68 | |||||
| 31 | M0286708 | Nut, Speed |
|
$ 43.07 | |||||
| 32 | W10137695 | Cord, Power |
|
$ 26.16 | |||||
| 33 | 67003796 | Insulation, Sound |
|
$ 19.27 | |||||
| 34 | W11177593 | Foot Brake (Replaces: 67003868) |
|
$ 10.96 | |||||
| 35 | 12684202C | Cover, Right Hinge (bisque) |
|
- | |||||
| 36 | WPM0104106 | Clip (2) (Replaces: M0104106) |
|
$ 7.35 | |||||
| 37 | 67001066 | Tube, Drain |
|
$ 55.82 | |||||
| 38 | 67001067 | Clip, Drain Tube |
|
$ 8.69 | |||||
| 39 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 10.39 | |||||
| 41 | WP12566606ED | Hinge, Top Right (Replaces: 12566604ED) |
|
Immediately | $ 42.42 |
