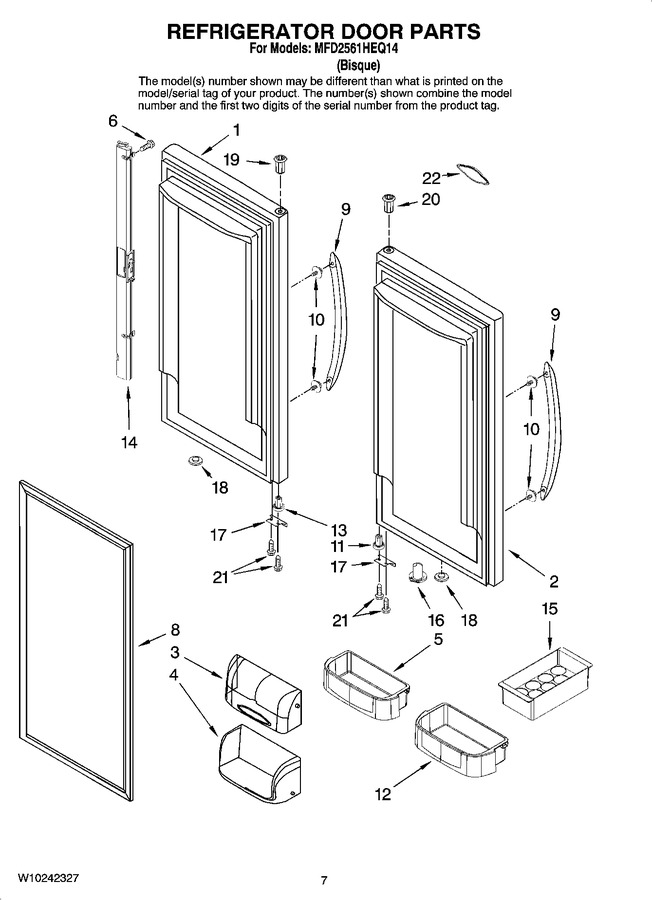

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024018QQ		Door, Left (bisque)		Appelez-nous	-
2	13024017QQ		Door, Right (bisque)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 79.21
5	67004040		Bin, Shelf (3) (medium)				$ 86.39
6	W11311945		Screw   (Replaces: 67006786)				$ 13.25
8	W10830189		Gasket, Door (2) (white)   (Replaces: W10137006)				$ 267.82
9	W10119655		Door Handle (bisque)		Appelez-nous	-
10	WP12992902		Screw, Handle   (Replaces: 12992902)				$ 10.72
11	12028601W		Bushing, Door (bottom-right) (white)   (Replaces: 67002732)				$ 21.63
12	67004641		Bin, Shelf (2) (gallon)				$ 45.66
13	67002722		Bushing, Door (bottom-left) (white)				$ 19.95
14	WP12722803W		Mullion, Door (bisque)   (Replaces: 67003265)			Immediately	$ 290.84
15	67215-2		Tray, Egg		Appelez-nous	-
16	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 7.34
17	12968202Q		Stop, Door (bisque)		Appelez-nous	-
18	10712401		Plug, Button (white)				$ 7.79
19	12395501W		Bushing, Door Upper Left (white)		Appelez-nous	-
20	WP67004977		Bushing, Door (upper Right) (white)   (Replaces: 67004977)				$ 7.38
21	WP98165		Screw   (Replaces: 67006287)				$ 7.71
22	2324038		Nameplate   (Replaces: 67006439)				$ 64.43
