SELECT A DIAGRAM

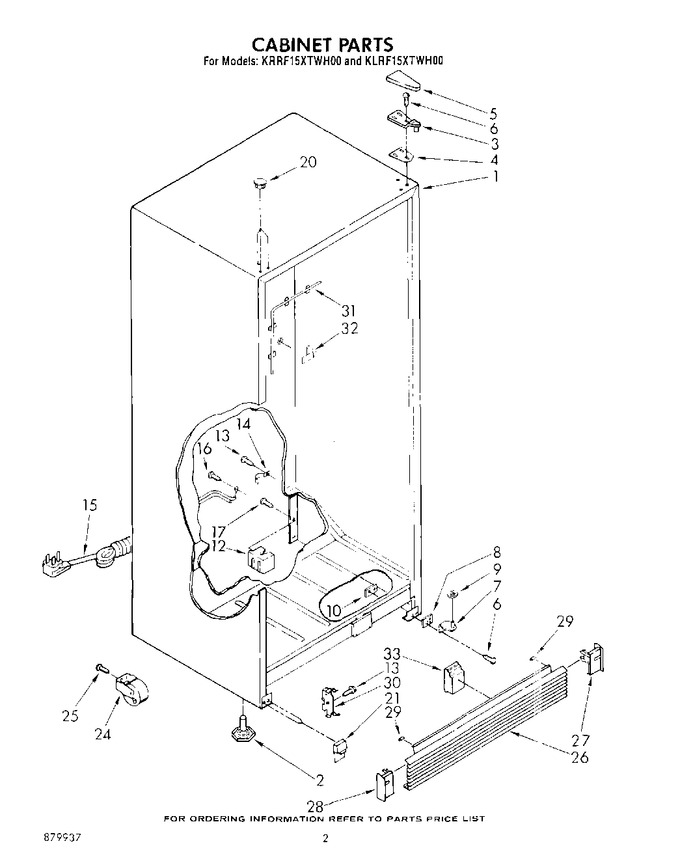

02 - Cabinet


03 - Liner , Lit/optional


04 - Door


05 - Unit


06 - Breaker And Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	836392		Leveler (2)		Appelez-nous	-
3	842039		Hinge, Top		Appelez-nous	-
4	836151		Shim, Hinge		Appelez-nous	-
5	989194		Hinge Cover (almond)		Appelez-nous	-
5	842010		Hinge Cover (white)		Appelez-nous	-
6	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.70
6	488949		Screw (repair)		Appelez-nous	-
7	1115903		Hinge, Bottom (l.h.)		Appelez-nous	-
7	1115900		Hinge, Bottom R.h.		Appelez-nous	-
8	836161		Shim, Bottom Hinge		Appelez-nous	-
9	WP487802		Washer   (Replaces: 488723)			Immediately	$ 7.12
10	836162		Tap Plate, Bottom		Appelez-nous	-
12	549947		Box, Junction		Appelez-nous	-
13	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
14	549193		Clamp				$ 12.65
15	1107603		Cord, Service		Appelez-nous	-
16	488474		Screw, 8-32 X 3/8		Appelez-nous	-
17	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.45
20	989195		Hole Plug (3) (almond)		Appelez-nous	-
20	842031		Hole Plug (3) (white)		Appelez-nous	-
21	839178		Filler, Corner		Appelez-nous	-
24	WPW10250570		Roller Rear (4)   (Replaces: 981122)				$ 37.96
25	488454		Screw, 1/4-28 X 1/2 (4)		Appelez-nous	-
26	1107193		Grille		Appelez-nous	-
27	1107443		Grille, End Cap (r.s)		Appelez-nous	-
28	1107444		Grille, End Cap (l.s.)		Appelez-nous	-
29	1107614		Bumper, Grille (2)		Appelez-nous	-
30	989068		Clip, Grille		Appelez-nous	-
31	851778		Stile Heater		Appelez-nous	-
32	935663		Retainer, Clip		Appelez-nous	-
33	1107271		Insert, Air Baffle		Appelez-nous	-
NI	488949		Screw (repair)		Appelez-nous	-
NI	00489194		Screw, 10-32 X 23/32   (Replaces: 489194)				$ 229.65

    View Diagram in Separate Window       Print Part List
