SELECT A DIAGRAM

02 - Cabinet


03 - Liner , Lit/optional


04 - Door


05 - Unit

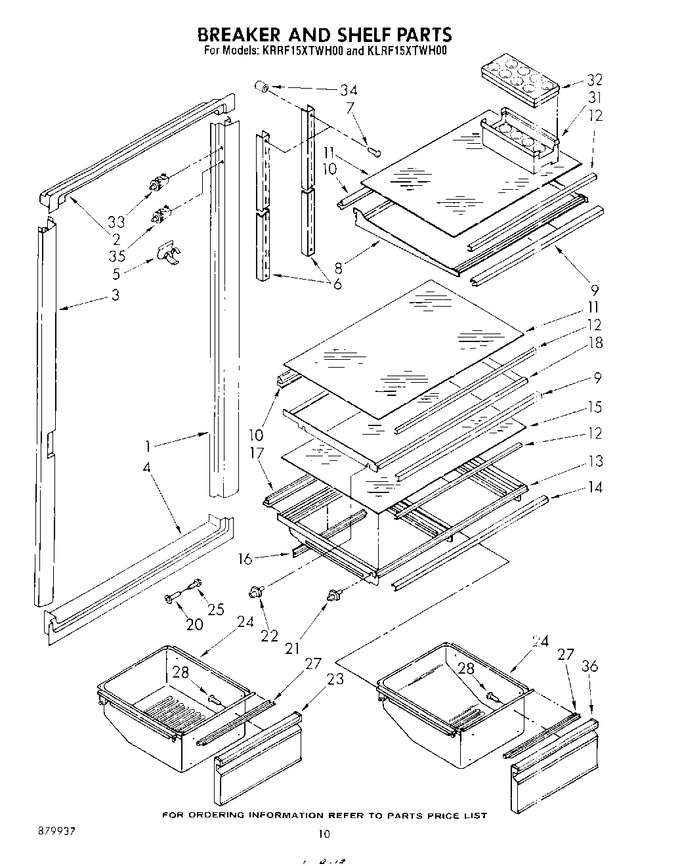

06 - Breaker And Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	843333		Breaker Trim (r.s) (without Switch Holes)		Appelez-nous	-
1	1107470		Breaker Trim (r.s)		Appelez-nous	-
2	940923		Breaker Trim (top)		Appelez-nous	-
3	840054		Breaker Trim (l.s)		Appelez-nous	-
3	1107749		Breaker Trim (l.s) (with Switch Holes)		Appelez-nous	-
4	836176		Breaker Trim, Bottom		Appelez-nous	-
5	534365		Breaker, Trim Clip (3)				$ 13.35
6	1107616		Shelf Ladder (2)		Appelez-nous	-
7	488357		Screw, 8 X 1-1/4 (6)		Appelez-nous	-
8	1107576		Shelf, Cantilever (3)		Appelez-nous	-
9	1107528		Trim, Shelf Front		Appelez-nous	-
10	1107622		Reflector, Glass Shelf		Appelez-nous	-
11	1107579		Glass, Cantilever Shelf		Appelez-nous	-
12	1107580		Shelf Gasket, Glass		Appelez-nous	-
13	1107582		Cover Frame (2)		Appelez-nous	-
14	1107583		Trim, Frame (2)		Appelez-nous	-
15	1107584		Glass, Cover (2)			Immediately	$ 13.08
16	1107478		Gasket, Rear (4)		Appelez-nous	-
17	1107578		Reflector, Glass Shelf (2)		Appelez-nous	-
18	1107625		Shelf, Fixed		Appelez-nous	-
20	1117317		Stud, Shelf (3)		Appelez-nous	-
21	1107968		Shelf Stud (5)		Appelez-nous	-
22	849297		Stud, Fixed Shelf		Appelez-nous	-
23	1107349		Front Pan, Crisper		Appelez-nous	-
24	1107871		Pan (4)		Appelez-nous	-
25	487547		Screw, 8-15 X 1 (3)		Appelez-nous	-
27	1107252		Front Pan, Gasket (4)		Appelez-nous	-
28	WP488729		Screw, 8 X 1/2 (16)   (Replaces: 488783)			Immediately	$ 7.45
28	488132		Screw, (repair) 10-16 X 9/16		Appelez-nous	-
31	1107384		Egg Container, Bottom		Appelez-nous	-
32	1107388		Egg Container, Top		Appelez-nous	-
33	549191		Switch, Light		Appelez-nous	-
34	1107542		Spacer Ground		Appelez-nous	-
35	1107764		Fan Motor, Switch		Appelez-nous	-
36	1107351		Front, Meat Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
