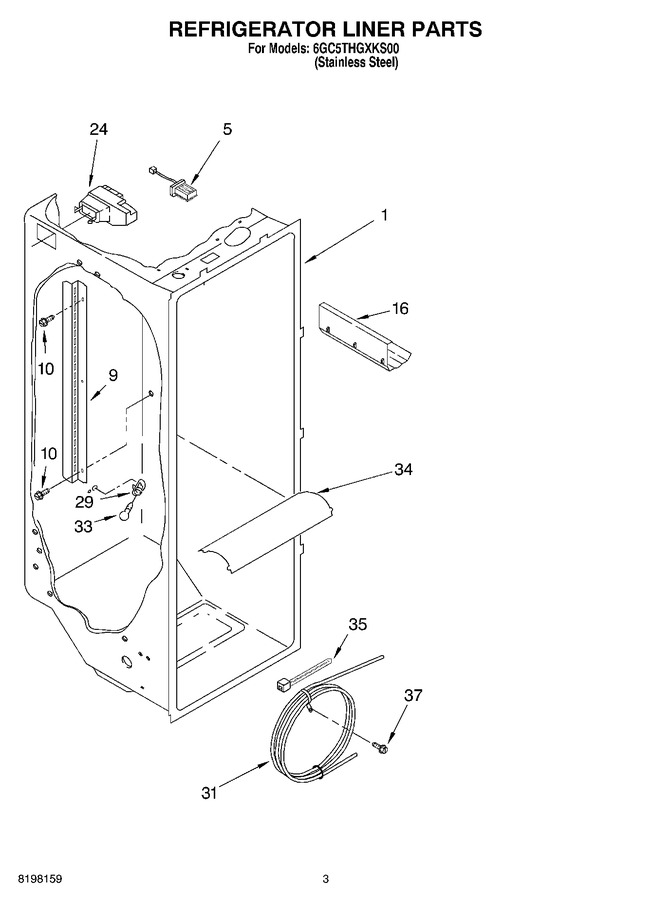

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
5 WP2220377 Baffle, Air Assy.   (Replaces: 2220377) In-Stock Immediately $ 381.05

9 2181796 Ladder, Shelf Appelez-nous -
10 WP489478 Screw   (Replaces: 489478) Special Order $ 8.18

16 W10777924 Rack, Wine & Egg   (Replaces: 2179404) Special Order $ 24.78

24 2214367 Air Diffuser Assembly Appelez-nous -
29 4387478 Socket   (Replaces: 2162085) In-Stock Immediately $ 115.67

31 WP2256126 Reservoir   (Replaces: 2196171) Special Order $ 177.29

33 WP67002552 Light Bulb   (Replaces: 851682) In-Stock Immediately $ 12.34

34 2203266 Light Lens Special Order $ 45.86

35 WP2205813 Strap   (Replaces: 2205813) Special Order $ 8.11

37 WP489478 Screw   (Replaces: 489478) Special Order $ 8.18


    View Diagram in Separate Window     Print Icon   Print Part List
