SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Parts Not Illustrated

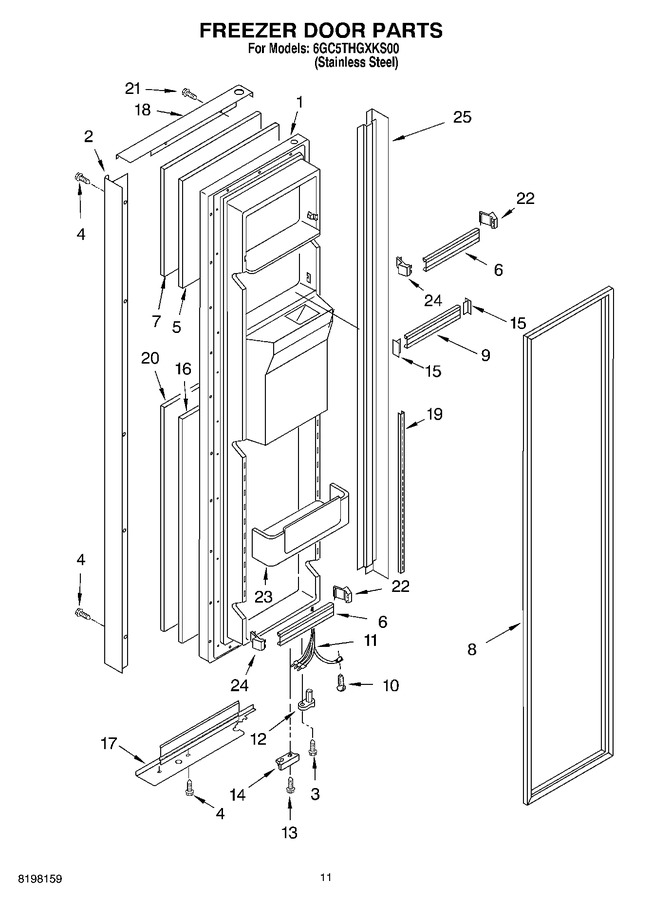

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2221524B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2207309S		Handle (stainless Steel)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
4	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
5	2214490		Shim, Panel Top		Appelez-nous	-
6	2199990		Trim, Door Shelf		Appelez-nous	-
7	2214487S		Panel, Top		Appelez-nous	-
8	2221309		Door Gasket, Magnetic (black)		Appelez-nous	-
9	2199991		Trim, Door Shelf		Appelez-nous	-
10	WP489128		Screw   (Replaces: 488500)				$ 10.26
11	2187666		Wiring Harness, Freezer Door		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2214451		Bracket, Door Stop (black)		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
16	2214491		Shim, Panel Bottom		Appelez-nous	-
17	2207315S		Trim, Door-bottom (stainless Steel)		Appelez-nous	-
18	2207313S		Trim, Door-top (stainless Steel)		Appelez-nous	-
19	2208147		Ladder, Shelf Assembly (2)		Appelez-nous	-
20	2214488S		Panel, Bottom		Appelez-nous	-
21	3196180		Screw		Appelez-nous	-
22	WP2195916K		Endcap   (Replaces: 2195916)			Immediately	$ 11.86
23	2199992		Bin, Door (2)		Appelez-nous	-
24	2195917		Endcap		Appelez-nous	-
25	2207311S		Trim, Door (hinge Side) (stainless Steel)		Appelez-nous	-
