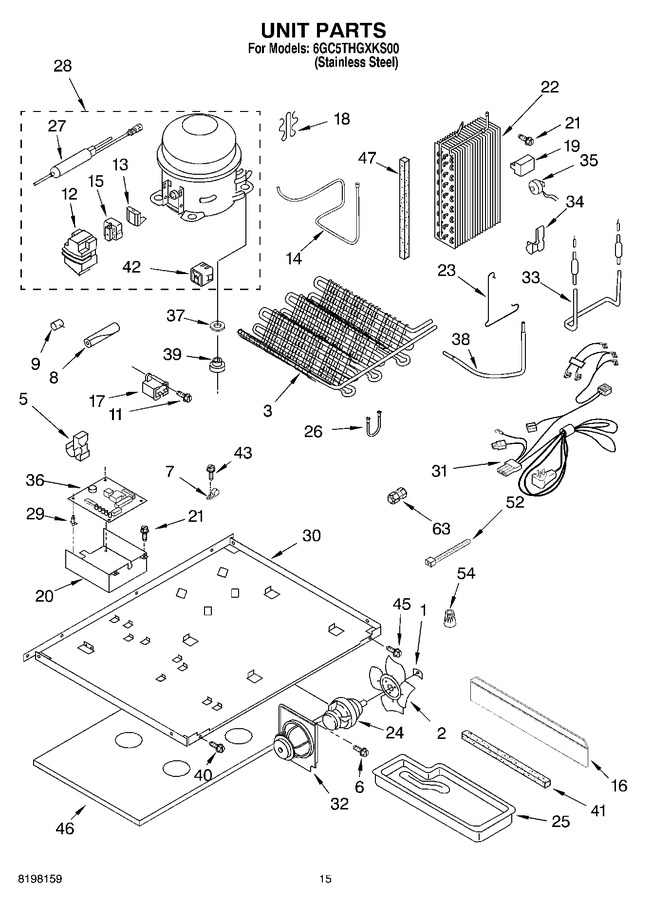

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 8.43 | |||||
| 2 | 2190685 | Fan, Blade |
|
$ 52.00 | |||||
| 3 | 2205983 | Condenser Assembly |
|
- | |||||
| 5 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 6 | WP8281196 | Screw (Replaces: 489494) |
|
Immediately | $ 7.55 | ||||
| 7 | W11456069 | Clamp, Tube (Replaces: 2185788) |
|
Immediately | $ 22.40 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | WP2158826 | Dampener (Replaces: 2158826) |
|
$ 1.82 | |||||
| 11 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 12 | WP2162358 | Cover ((service)) (Replaces: 4387731) |
|
$ 95.29 | |||||
| 13 | 2176790 | Overload ((service)) (Replaces: 4387960) |
|
$ 130.38 | |||||
| 14 | 2214365 | Tube Suction |
|
- | |||||
| 15 | WP2262184 | Relay (service) (Replaces: 4387957) |
|
$ 123.46 | |||||
| 16 | 2203020 | Extension, Air Baffle |
|
- | |||||
| 17 | WP2201147 | Capacitor, 2201147 (production) (service) (Replaces: 4387874) |
|
$ 135.42 | |||||
| 18 | 2163787 | Clip, Compressor Mounting (4) |
|
$ 7.83 | |||||
| 19 | 2208183 | Block, Evaporator |
|
- | |||||
| 20 | 2199929 | Housing, Control Board |
|
- | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2209611) |
|
Immediately | $ 381.49 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | 2219862 | Fan, Motor |
|
- | |||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 158.16 | ||||
| 26 | 2199806 | Tube, Heat Loop |
|
- | |||||
| 27 | W10843121 | Drier (Replaces: 2199167) |
|
Immediately | $ 57.13 | ||||
| 28 | W10309997 | Compressor (includes Items 12,13,15,17, & 27) (also Order 876765 Tube Kit) (Replaces: 2187153) |
|
$ 583.93 | |||||
| 29 | WP2203075 | Spacer (Replaces: 2203075) |
|
Immediately | $ 18.81 | ||||
| 30 | 2210728 | Unit Mounting Plate |
|
- | |||||
| 31 | 2187469 | Unit, Harness |
|
- | |||||
| 32 | 2214631 | Fan, Motor Bracket |
|
- | |||||
| 33 | WPW10123653 | Heater, Defrost (Replaces: 2188177) |
|
$ 164.49 | |||||
| 34 | 2161330 | Clip |
|
- | |||||
| 35 | WPW10225581 | Bi-metal, Defrost (Replaces: 2196155) |
|
Immediately | $ 50.77 | ||||
| 36 | 2213468 | Circuit Board, Dual Temp. |
|
- | |||||
| 37 | 680975 | Washer |
|
- | |||||
| 38 | 2214366 | Tube, Condenser To Heat Loop |
|
- | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 39 | WP2163786 | Grommet (4) (production) (Replaces: 2163786) |
|
$ 8.36 | |||||
| 40 | 3400515 | Screw |
|
- | |||||
| 41 | 4388500 | Gasket (Replaces: 2203876) |
|
$ 94.91 | |||||
| 42 | 2188509 | Start Device, Combination (production Alternate) |
|
- | |||||
| 43 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 45 | 3400514 | Screw |
|
- | |||||
| 46 | 2214509 | Insulation, Mounting Plate |
|
- | |||||
| 47 | 2203160 | Side Support |
|
- | |||||
| 52 | WP2205813 | Strap (Replaces: 2205813) |
|
$ 8.11 | |||||
| 54 | 227991 | Wire Connector |
|
- | |||||
| 63 | N/A | And Optional Parts Not Included |
|
- | |||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 63 | WP4318044 | Union (Replaces: 2196152) |
|
$ 10.87 | |||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 18.65 | |||||
| 63 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 |
