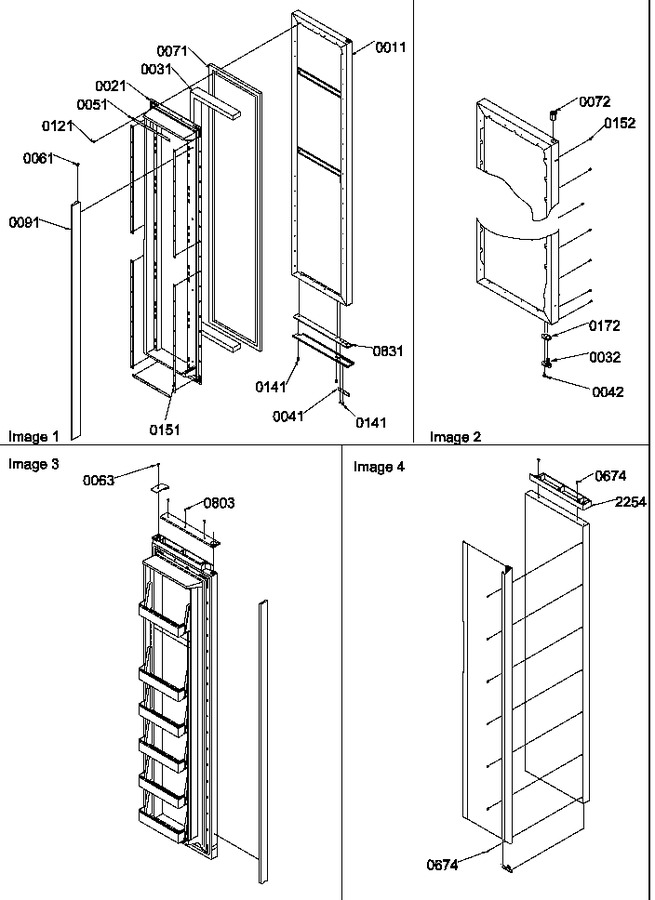

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881104W		Ass`y, Frz Door(white)		Appelez-nous	-
21	10534901		Liner, Frz. Door		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
41	C8972403		Stop, Door (blk)		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	C8982801		Retainer, Door Liner		Appelez-nous	-
61	10063102		Clip, Door Dike		Appelez-nous	-
63	M0213517		Screw K		Appelez-nous	-
71	10359702		Gasket (w Frz Dr)		Appelez-nous	-
72	10961001		Bushing, Door (wht)		Appelez-nous	-
91	10063206		Rem Dike I & W Lower		Appelez-nous	-
121	M0219730		Screw				$ 7.65
141	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
151	D7828601		Retainer, Door Liner		Appelez-nous	-
152	10281002		Grommet, Screw		Appelez-nous	-
172	10361804		Shim, Dr Bushing		Appelez-nous	-
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
803	M0213815		Screw		Appelez-nous	-
831	10494604		Support, Fz Trim		Appelez-nous	-
2254	10979201		Ext, Fz Dr (wht)		Appelez-nous	-
