SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Cabinet Parts And Toe Grille
02 - Cabinet Parts And Toe Grille

Diagram for 03 - Control Assy
03 - Control Assy

Diagram for 04 - Drain System, Rollers, And Evap Assy
04 - Drain System, Rollers, And Evap Assy

Diagram for 05 - Fz Door And Accessories
05 - Fz Door And Accessories

Diagram for 06 - Fz Shelves And Light
06 - Fz Shelves And Light

Diagram for 07 - Handles, Trim, And Toe Grille Kits
07 - Handles, Trim, And Toe Grille Kits

Diagram for 08 - Ice Maker Parts And Add On Ice Maker Kit
08 - Ice Maker Parts And Add On Ice Maker Kit

Diagram for 09 - Machine Compartment
09 - Machine Compartment

Diagram for 10 - Ref Door And Accessories
10 - Ref Door And Accessories

Diagram for 11 - Ref/fz Shelves, Lights, And Hinges
11 - Ref/fz Shelves, Lights, And Hinges

Diagram for 12 - Shelves, Deli, And Crisper Assemblies
12 - Shelves, Deli, And Crisper Assemblies


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10881003W Ass`y, Ref Door(white) Appelez-nous -
21 10861502 Liner-ref Dr Appelez-nous -
31 B0523590 Insul., Batt Appelez-nous -
34 R0181181 Closure, Door (blk)   (Replaces: 12113204) In-Stock Immediately $ 6.80

44 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 7.71

53 10520410 Shelf, Chiller Appelez-nous -
62 M0213517 Screw K Appelez-nous -
63 10521814 Shelf-ref Door Appelez-nous -
74 10961001 Bushing, Door (wht) Appelez-nous -
81 10359701 Gasket, Door (w Ref) Appelez-nous -
104 10281002 Grommet, Screw Appelez-nous -
113 10883801 Shelf, Dairy Appelez-nous -
121 10519004 Frame-chiller Appelez-nous -
133 12102907 Track, Dairy Door Appelez-nous -
134 10361804 Shim, Dr Bushing Appelez-nous -
143 12102908 Track, Dairy Door Appelez-nous -
173 10519208 Door, Chiller Appelez-nous -
183 10162101 Glide-igloo Door Appelez-nous -
191 12033201 Tunnel-air Appelez-nous -
201 10165101 Clip-tubular Appelez-nous -
303 M0500706 Seal-o Ring Appelez-nous -
351 M0219730 Screw Special Order $ 7.65

391 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 7.71

413 12103001 Door-dairy Appelez-nous -
451 10202001 Clip, Retainer Appelez-nous -
471 10494603 Support Ref Trim (btm) Appelez-nous -
481 C8972403 Stop, Door (blk) Appelez-nous -
675 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 7.71

751 10520412 Shelf, Chiller Appelez-nous -
783 12102801 Rod-retainer Appelez-nous -
802 M0213815 Screw Appelez-nous -
2265 10979101 Exten. W Ref Door Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

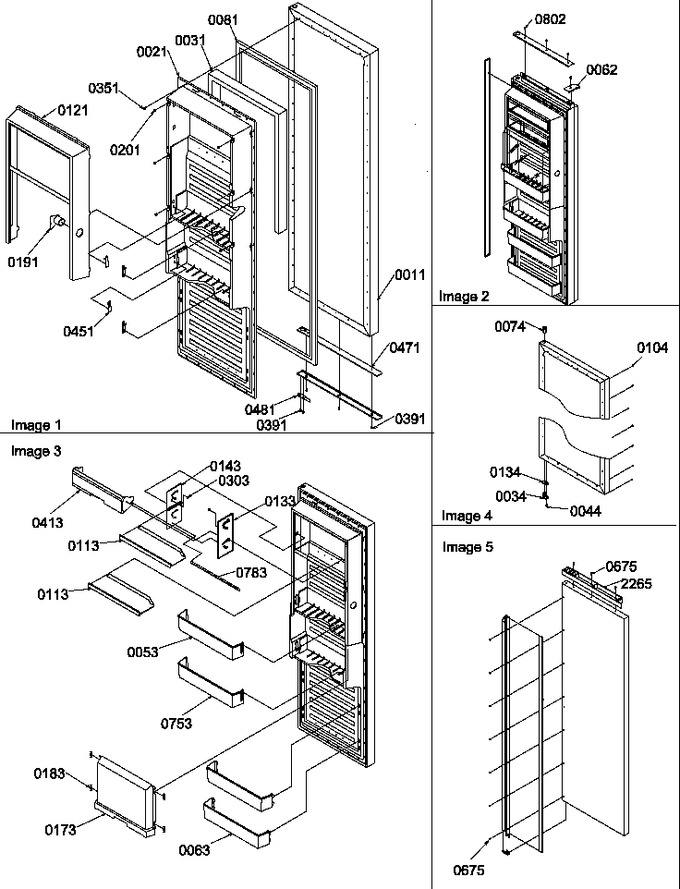

Diagram for SB520SW (BOM: P1185003W W)
