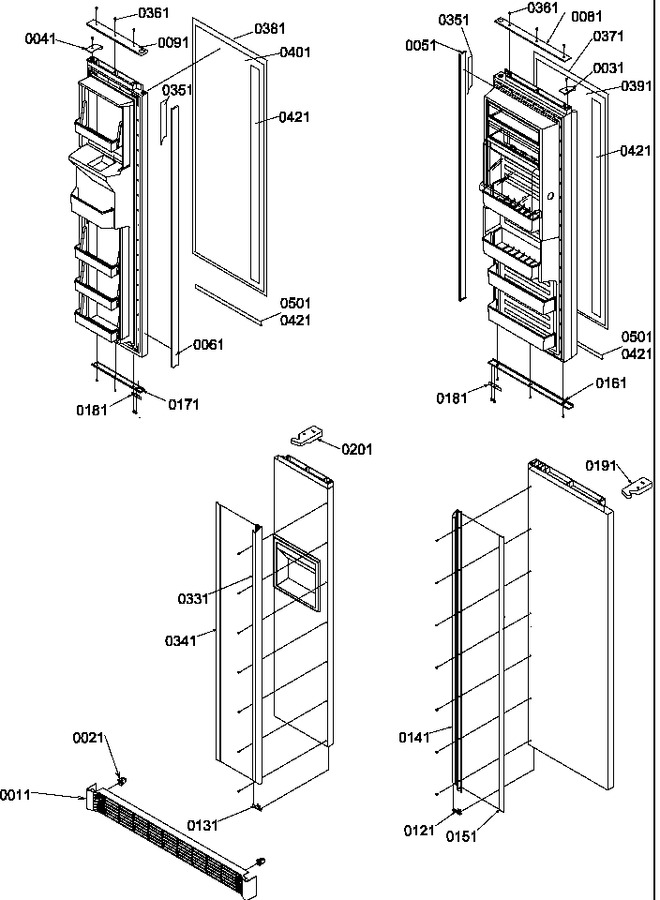

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10470302 | Assy, Toe Grille (white) |
|
- | |||||
| 21 | M0117302 | Clip, Grille |
|
- | |||||
| 31 | 10871111 | Cap, Ref Handle Top (gray) |
|
- | |||||
| 31 | 10871105 | Cap, Ref Handle Top(blk) |
|
- | |||||
| 31 | 10871101 | Cap, W Ref Handle Top |
|
- | |||||
| 41 | 10871102 | Cap-w Fz Hndl Top |
|
- | |||||
| 41 | 10871106 | Cap-e Fz Hndl Top |
|
- | |||||
| 41 | 10871112 | Cap-gy Fz Hndl Top |
|
- | |||||
| 51 | 10494501 | Trim, Vert (refr) |
|
- | |||||
| 51 | 10494507 | Trim, Vertical (black) |
|
- | |||||
| 51 | 10494509 | Trim, Vert |
|
- | |||||
| 61 | 10494508 | Trim, Vertical (black) |
|
- | |||||
| 61 | 10494510 | Trim, Vert |
|
- | |||||
| 61 | 10494502 | Trim, Vert (frz) |
|
- | |||||
| 81 | 10494404 | Trim, Refr Dr Top |
|
- | |||||
| 81 | 10494407 | Trim, Ref Dr Top (stnl) |
|
- | |||||
| 81 | 10494406 | Trim- E Ref Dr Top |
|
- | |||||
| 91 | 10494204 | Trim-w Fz Dr Top |
|
- | |||||
| 91 | 10494206 | Trim-e Fz Dr Top |
|
- | |||||
| 91 | 10494207 | Trim, Frz Dr Top (stnl) |
|
- | |||||
| 121 | 10871205 | Cap, Ref Handle Bot(black) |
|
- | |||||
| 121 | 10871211 | Cap, Ref Handle Bot(gray) |
|
- | |||||
| 121 | 10871201 | Cap, Ref Handle Bot(white) |
|
- | |||||
| 131 | 10871212 | Cap-gy Fz Hndl Bot |
|
- | |||||
| 131 | 10871202 | Cap-w Fz Hndl Bot. |
|
- | |||||
| 131 | 10871206 | Cap- E Fz Hndl Bot. |
|
- | |||||
| 141 | 12106209 | Handle, Ref Dr (white) |
|
- | |||||
| 141 | 12106213 | Handle, Ref Dr (ebony) |
|
- | |||||
| 141 | 12106221 | Handle, Ref Dr (sil) |
|
- | |||||
| 151 | 10945943 | Insert-handle |
|
- | |||||
| 151 | 10945935 | Insert-e Handle |
|
- | |||||
| 151 | 10945933 | Insert-w Handle |
|
- | |||||
| 161 | 10602605 | Trim, Refrig Door (bottom) |
|
- | |||||
| 161 | 10602607 | Trim, Ref Dr Bot |
|
- | |||||
| 161 | 10602609 | Trim, Ref Dr Bot (stnl) |
|
- | |||||
| 171 | 10602508 | Trim, Frz Dr Bot (stnl) |
|
- | |||||
| 171 | 10602506 | Trim, Frz Dr Bot W |
|
- | |||||
| 171 | 10602505 | Trim, Frz Door (bottom) |
|
- | |||||
| 181 | C8972405 | Stop-w Door |
|
- | |||||
| 181 | C8972404 | Stop, Satin Door |
|
- | |||||
| 191 | 10504213 | Cover, Hinge(lh) |
|
- | |||||
| 191 | 10504209 | Hinge- Cover Lh Gray |
|
- | |||||
| 191 | 10504205 | Cover, Hinge |
|
- | |||||
| 201 | 10504206 | Cover, Hinge |
|
- | |||||
| 201 | 10504214 | Cover, Hinge(rh) |
|
- | |||||
| 201 | 10504210 | Cover Hinge |
|
- | |||||
| 331 | 12106215 | Handle, Frz Dr (white) |
|
- | |||||
| 331 | 12106223 | Handle, Frz Dr (sil) |
|
- | |||||
| 331 | 12106217 | Handle, Frz Dr (ebony) |
|
- | |||||
| 341 | 10945944 | Insert-handle |
|
- | |||||
| 341 | 10945939 | Insert, Hndl (black) |
|
- | |||||
| 341 | 10945937 | Insert-w Hndl |
|
- | |||||
| 351 | R0195042 | Double Backed Tape 6ft Roll |
|
- | |||||
| 361 | M0213828 | Screw |
|
- | |||||
| 371 | 10096944 | Panel-black |
|
- | |||||
| 371 | 10096940 | Panel-white |
|
- | |||||
| 381 | 10096943 | Panel-black |
|
- | |||||
| 381 | 10096939 | Panel-white |
|
- | |||||
| 391 | 10234611 | Spacer-ref |
|
- | |||||
| 401 | 10234612 | Spacer |
|
- | |||||
| 421 | R0195044 | Tape, Adhesive 9 Ft Roll |
|
- | |||||
| 501 | B8391223 | Retainer-dec Pan |
|
- | |||||
| 501 | B8391225 | Ret-e Dec.panel |
|
- | |||||
| 501 | B8391224 | Ret-w Dec Pan |
|
- | |||||
| NI | 10112411 | Trim-oc |
|
- | |||||
| NI | 10112412 | Trim-oc |
|
- | |||||
| NI | R0195037 | Tape Kit |
|
- | |||||
| NI | 10112403 | Trim-o.c |
|
- | |||||
| NI | 10112408 | Trim-oc |
|
- | |||||
| NI | M0202514 | Screw |
|
- | |||||
| NI | 10112407 | Trim-oc |
|
- | |||||
| NI | 10112401 | Trim-oc |
|
- | |||||
| NI | 10112402 | Trim-o.c |
|
- | |||||
| NI | A3049001 | Gusset-bezel |
|
- | |||||
| NI | 10112409 | Trim-oc |
|
- | |||||
| NI | 10112410 | Trim-oc |
|
- |
