Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8975701 M.c. Back Appelez-nous -
2 D7790601 Drain Pan Appelez-nous -
3 M0241118 Screw-sm Appelez-nous -
4 A9008301 Felt Appelez-nous -
5 C8979302 Bracket Appelez-nous -
6 D7835501 Support M.c. Appelez-nous -
7 M0293703 Speednut Appelez-nous -
8 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.43

9 D7790501 Support Drain Pan Appelez-nous -
10 WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 7.56

11 M0233844 Screw, T F Appelez-nous -
12 WPB2150504 Drier   (Replaces: B5715001) Special Order $ 123.28

13 B5742601 Blade, Fan Appelez-nous -
14 WPW10169124 Grommet   (Replaces: B8333401) Special Order $ 6.80

15 B8358301 Spring, Overload Appelez-nous -
16 YB8358601 Bale Strap Appelez-nous -
17 D7803002 Condenser Appelez-nous -
18 B8352901 Clip Comp Appelez-nous -
19 C8906203 Overload Appelez-nous -
20 C8931101 Shield-capacitor Appelez-nous -
21 2154436 Relay-ptc   (Replaces: C8931502) Special Order $ 127.52

22 WPW10662129 Capacitor   (Replaces: C8931602) In-Stock Immediately $ 52.97

23 C8960801 Term Cover Appelez-nous -
24 C8982101 Bracket, Cond Motor Appelez-nous -
25 833697 Motor, Fan   (Replaces: D7584001) In-Stock Immediately $ 98.23

26 D7736203 Compressor Aea1410axa Appelez-nous -
27 D7811001 Bracket, Timer Appelez-nous -
28 R0131577 Timer, Defrost (8 Hr)   (Replaces: D7790403) In-Stock Immediately $ 52.57

29 D7866701 Harness M.c. Appelez-nous -
30 D7691002 Cond. Fan Shrd Appelez-nous -
31 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 7.43

32 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 7.54

33 M0218118 Screw Appelez-nous -
34 M0221332 Screw, Shoulder Appelez-nous -
35 M0223803 Screw Appelez-nous -
36 M0211530 Screw Appelez-nous -
37 M0253916 Screw Appelez-nous -
38 M0500107 Grommet K Appelez-nous -
40 A3261703 Grommet Per In. Appelez-nous -
41 B8346301 Spacer Cond. Appelez-nous -
42 D7595411 Base Pan - Ptd Appelez-nous -
44 A3072001 Sleeve K Appelez-nous -
45 M0110508 Clip Appelez-nous -
46 M0102325 Clamp Appelez-nous -
47 B5759604 Gasket Appelez-nous -
48 M0327502 Strap-cable Appelez-nous -
49 DC61-40081A Tie, Wire   (Replaces: M0585401) Special Order $ 0.85


    View Diagram in Separate Window     Print Icon   Print Part List

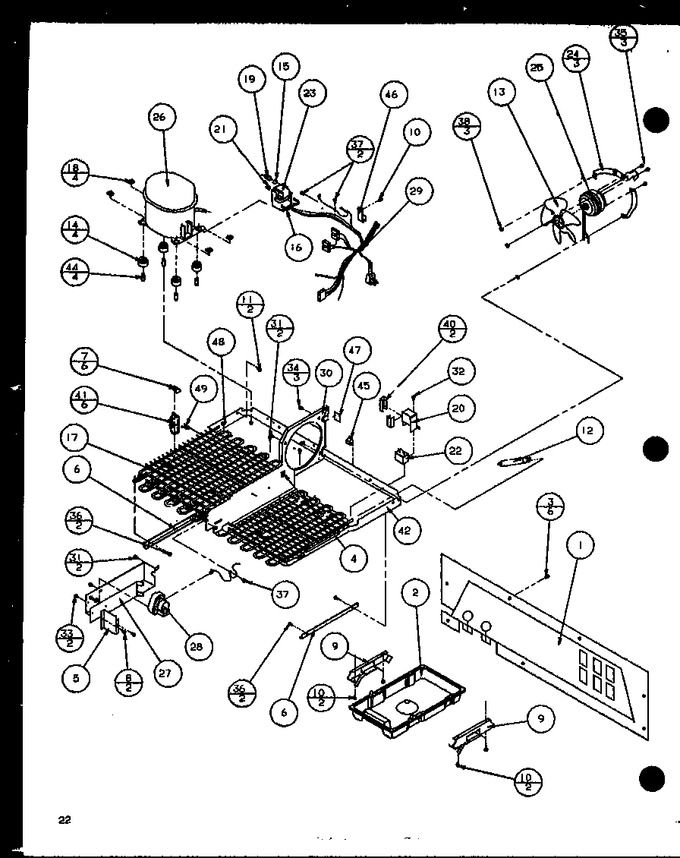

Diagram for SC19J (BOM: P7804507W)
