Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 R0157154 Power Cord Appelez-nous -
3 A3076901 Plug-button Special Order $ 5.70

4 A3080001 Plug, Button (blk) Appelez-nous -
5 C8742401 Assy, Roller Bracket Appelez-nous -
6 M0286708 Nut, Speed Special Order $ 43.07

7 M0520102 Roller Appelez-nous -
8 M1205302 Rivet Special Order $ 5.85

9 M1200004 Cotter Pin K Appelez-nous -
10 M1200202 Pin K Appelez-nous -
11 D7797401 Drain Tube Appelez-nous -
12 M0102303 Clamp Appelez-nous -
14 M0103901 Clamp Appelez-nous -
15 M0204339 Screw Bolt K Appelez-nous -
16 WP489399 Screw   (Replaces: M0233103) Special Order $ 6.57

17 WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 7.56

18 D7751609 Heat Ex Cover Appelez-nous -
19 B8318811 Fill Tube Assy Appelez-nous -
20 C8971903 Tunnel, Heat Exchanger Appelez-nous -
21 M0310319 Plug Button Appelez-nous -
22 WP90767 Screw   (Replaces: M0211216) In-Stock Immediately $ 7.43

23 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 7.43


    View Diagram in Separate Window     Print Icon   Print Part List

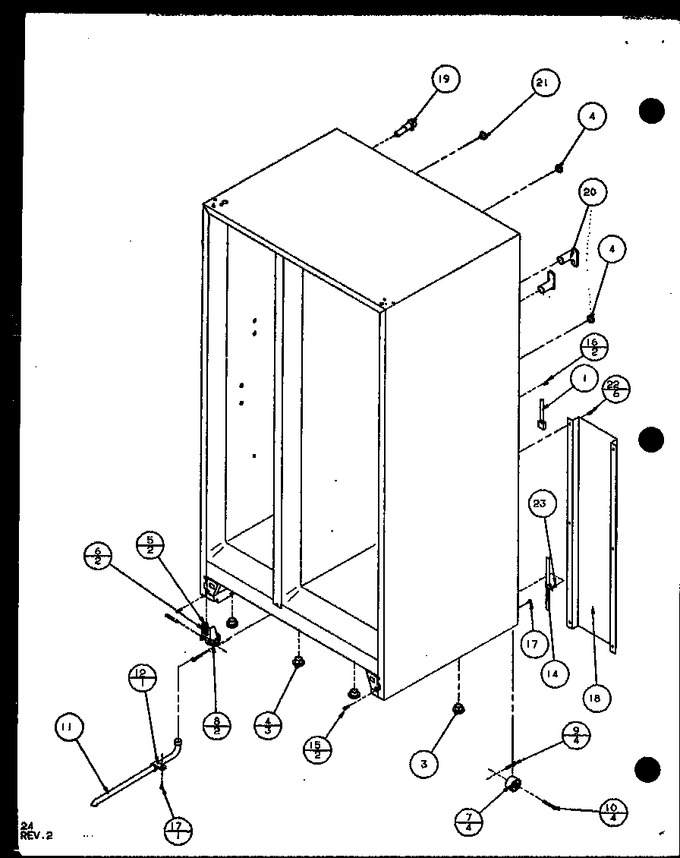

Diagram for SC19J (BOM: P7804507W)
