Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7757920 Door Ref W Appelez-nous -
1 D7845711 Door Ref G Q Appelez-nous -
1 D7757922 Door Ref L Appelez-nous -
2 D7828303 Inner Door. Ref Appelez-nous -
3 D7797101 Bucket, Ref Door Appelez-nous -
4 D7797001 Shelf, Ref Door Appelez-nous -
5 B0566724 Insulation Appelez-nous -
6 C8987102 Seal, Door Dike Appelez-nous -
7 B0523562 Insul. By The Ft. Appelez-nous -
8 D7870906 Gasket, Door (w Ref) Appelez-nous -
9 M0219717 Screw Appelez-nous -
10 D7803501 Shelf, Condiment Appelez-nous -
11 D7796901 Dairy Door Appelez-nous -
12 D7806404 Container Sec. Ser. Appelez-nous -
13 D7814602 Snugger Appelez-nous -
14 D3799802 Butter Tray Appelez-nous -
15 D7695603 Egg Bucket A-v Appelez-nous -
16 D7805902 Cover, Egg Bucket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

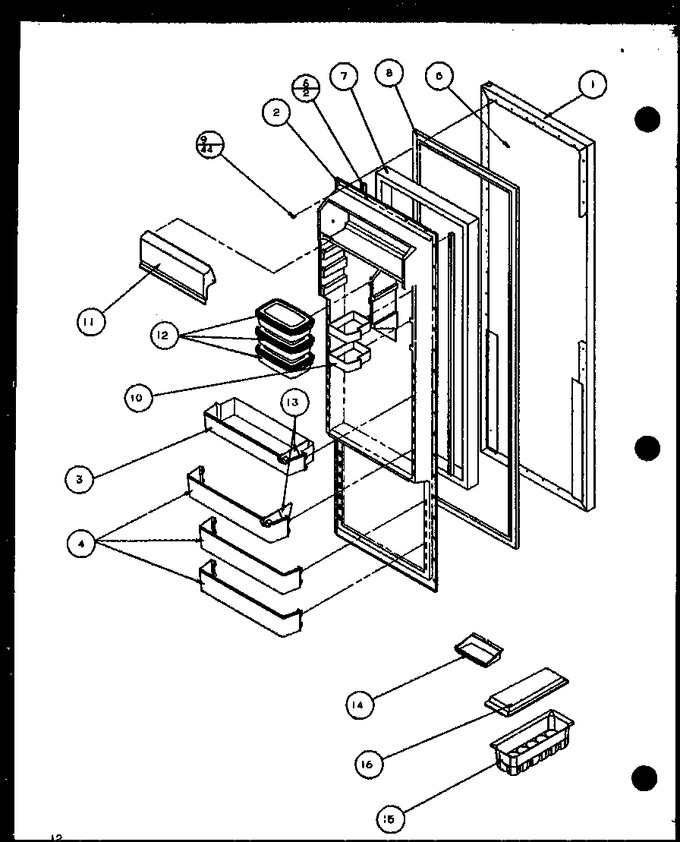

Diagram for SC19J (BOM: P7804507W)
