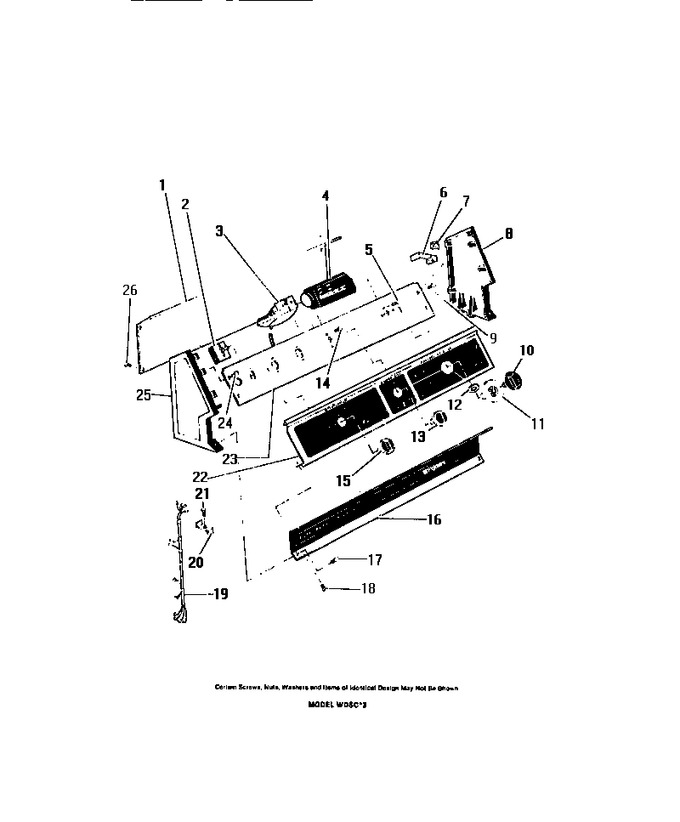

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8010781		Panel-console Rear		Appelez-nous	-
2	8014346		Switch Water Temperature Selector		Appelez-nous	-
3	8014348		Switch Water Level		Appelez-nous	-
4	8015505		Timer, Washer		Appelez-nous	-
5	8006636		Screw (2)		Appelez-nous	-
6	8014349		Strap-ground		Appelez-nous	-
7	8014350		Clip (8)		Appelez-nous	-
8	8010787		End Cap R.h.		Appelez-nous	-
9	8010789		Screw (2)		Appelez-nous	-
10	8014337		Knob Timer		Appelez-nous	-
11	8015498		Indicator, Timer Dial		Appelez-nous	-
12	8015493		Spacer, Timer		Appelez-nous	-
13	8014340		Knob-water Level Switch		Appelez-nous	-
14	8002339		Screw (2)		Appelez-nous	-
15	8014340		Knob-water Temperature Switch		Appelez-nous	-
16	8014344		Trim-lower		Appelez-nous	-
17	8011318		Screw (2)		Appelez-nous	-
18	8010782		Screw (3)		Appelez-nous	-
19	8015508		Wiring Harness		Appelez-nous	-
20	8002341		Terminal		Appelez-nous	-
21	8001689		Screw		Appelez-nous	-
22	8014341		Escutcheon		Appelez-nous	-
23	8014339		Bracket-control Mounting		Appelez-nous	-
24	8002284		Screw (2)		Appelez-nous	-
25	8010783		End Cap L.h.		Appelez-nous	-
26	8010782		Screw (4)		Appelez-nous	-
