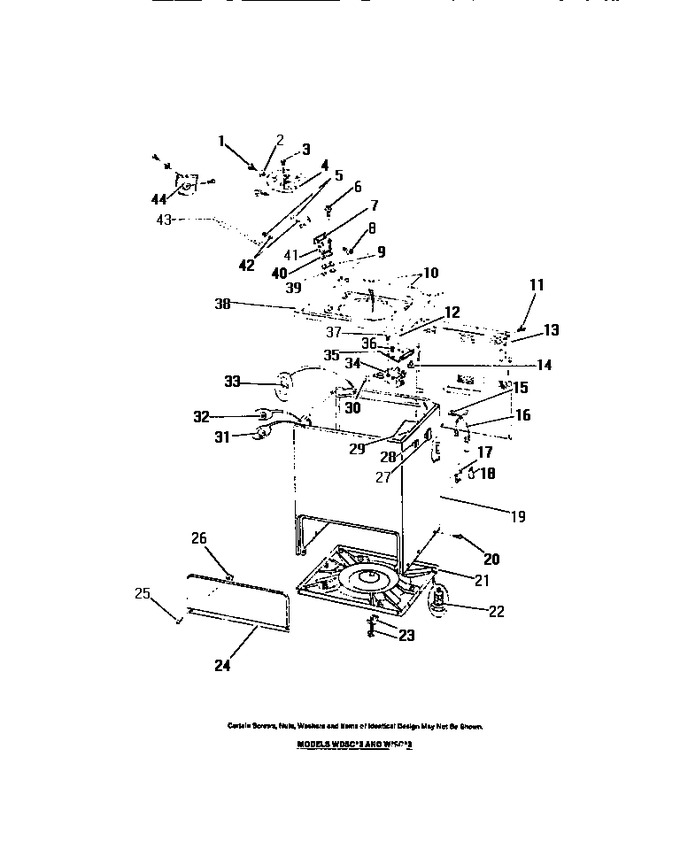

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8002407 | Screw (3) |
|
- | |||||
| 2 | 8002408 | Washer (4) |
|
- | |||||
| 3 | 8015520 | Bumper, Lid (2) |
|
- | |||||
| 4 | 8002409 | Strike |
|
- | |||||
| 5 | 8002415 | Nut (4) |
|
- | |||||
| 6 | 8002416 | Screw (4) |
|
- | |||||
| 7 | 8002411 | Gasket (2) |
|
- | |||||
| 8 | 8002416 | Screw (4) |
|
- | |||||
| 9 | 8015527 | Spacer, Lid Hinge (2) |
|
- | |||||
| 10 | 8006557 | Retainer (2) |
|
- | |||||
| 11 | 8001559 | Screw (16) |
|
- | |||||
| 12 | 8002422 | Nut |
|
- | |||||
| 13 | 8011286 | Panel-back |
|
- | |||||
| 14 | 8002420 | Rivet (2) |
|
- | |||||
| 15 | 8004647 | Bushing, Electrical Service Cord |
|
- | |||||
| 16 | 8015515 | Cord, Electrical Service |
|
- | |||||
| 17 | 8014902 | Bracket, Capacitor |
|
- | |||||
| 18 | 8014903 | Capacitor |
|
- | |||||
| 19 | 8015512 | Shell, Cabinet, White |
|
- | |||||
| 20 | 8001613 | Screw (6) |
|
- | |||||
| 21 | 8011290 | Base - Washer |
|
- | |||||
| 22 | 8950088 | Foot (4) |
|
- | |||||
| 23 | 8004066 | Screw And Block, Shipping |
|
- | |||||
| 24 | 8015494 | Panel-access, White |
|
- | |||||
| 25 | 8006545 | Screw (2) |
|
- | |||||
| 26 | 8002388 | Nut (2) |
|
- | |||||
| 27 | 8011305 | Clip Long |
|
- | |||||
| 28 | 8011304 | Clip Short |
|
- | |||||
| 29 | 8004099 | Clip (2) |
|
- | |||||
| 30 | 8001622 | Screw (2) |
|
- | |||||
| 31 | 8001597 | Clip-spring (2) |
|
- | |||||
| 32 | 8001596 | Bumper (4) |
|
- | |||||
| 33 | 8002384 | Hinges-top (2) |
|
- | |||||
| 34 | 8015518 | Lock, Lid |
|
- | |||||
| 35 | 8015528 | Bracket |
|
- | |||||
| 36 | 8001596 | Bumper (2) |
|
- | |||||
| 37 | 8006547 | Screw (2) |
|
- | |||||
| 38 | 8015521 | Top, Washer, White |
|
- | |||||
| 39 | 8002400 | Nut (2) |
|
- | |||||
| 40 | 8002413 | Gasket (2) |
|
- | |||||
| 41 | 8002412 | Hinges (2) |
|
- | |||||
| 42 | 8002414 | Washer (4) |
|
- | |||||
| 43 | 8015524 | Lid Washer, White |
|
- | |||||
| 44 | 8015519 | Bracket, Lid |
|
- |
