SELECT A DIAGRAM

02 - Console


04 - Cabinet, Base, Top, Lid


05 - Outer Tub, Inner Tub, Sub Top, Agit


06 - Pump, Hoses, Water Valve


07 - Motor, Pulleys, Belt, Springs


08 - Mechanism

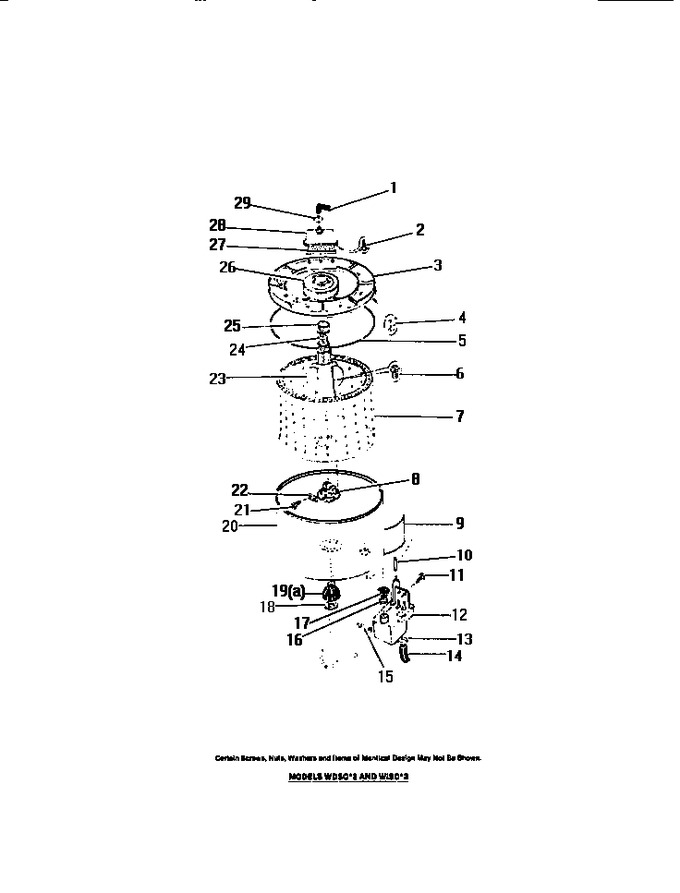

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002353		Hose-pump To Lint Filter		Appelez-nous	-
2	8002432		Screw (5)		Appelez-nous	-
3	8011314		Sub, Top				$ 10.28
4	8002429		Clip (10)		Appelez-nous	-
5	8002430		Seal		Appelez-nous	-
6	8015509		Screw (5)		Appelez-nous	-
7	8015495		Basket, Inner Wash		Appelez-nous	-
8	8014908		Support-tub		Appelez-nous	-
9	8011275		Shield		Appelez-nous	-
10	8015491		Hose, Pressure Fill		Appelez-nous	-
11	8011280		Screw (2)		Appelez-nous	-
12	8002366		Trap - Button/drain		Appelez-nous	-
13	8014913		Clamp		Appelez-nous	-
14	8002364		Hose-trap To Pump		Appelez-nous	-
15	8011303		Nut		Appelez-nous	-
16	8002367		Clamp		Appelez-nous	-
17	8006674		Grommet		Appelez-nous	-
18	8002401		Washer-thrust		Appelez-nous	-
19	8011284		Bearing-tub Support		Appelez-nous	-
20	8002371		Tub-outer		Appelez-nous	-
21	8014909		Screw (2)		Appelez-nous	-
22	8014907		Plate, Lock		Appelez-nous	-
23	8002424		Agitator		Appelez-nous	-
24	8002427		Washer		Appelez-nous	-
25	8006677		Cap (incl. Washer)		Appelez-nous	-
26	8004157		Dispenser, Fabric Softner (optional)		Appelez-nous	-
27	8002435		Filter-lint		Appelez-nous	-
28	8011313		Housing		Appelez-nous	-
29	8005517		Clamp, Hose		Appelez-nous	-
